Description

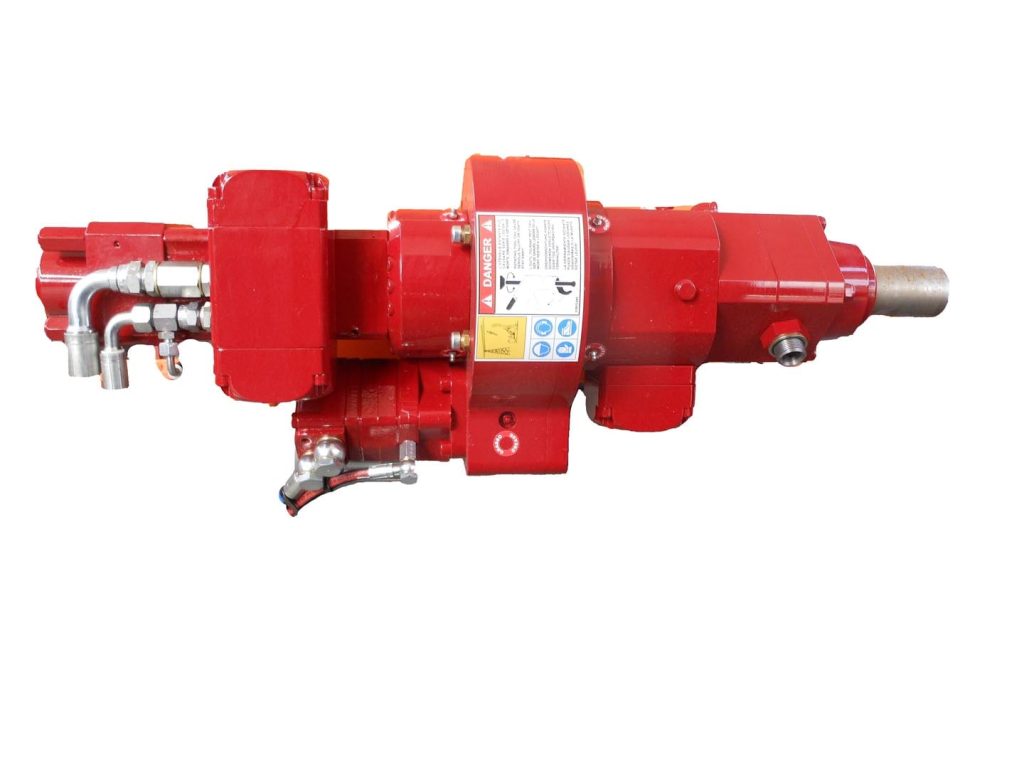

The Top Hammer Drill ID SMC-TE-MA500 is a robust hydraulic rotary percussion hammer featuring independent left and right rotation for enhanced drilling precision. Primarily designed for self-drilling anchor applications, this drill efficiently operates with either air or water purge systems and supports extendable screw rods or bars to enable simultaneous drilling and grout injection. Ideal for use in civil engineering anchor installations and deep quarry drilling across various rock types, this model delivers strong performance with a feeding system powered hydraulically. It offers an impact energy of 237 ft-lbf and rotation torque of 1844 lb-ft, making it suitable for demanding jobs. Compatible with multiple shank types—including R25, R32, R38, R51, ISCHEBEDECK TITAN, C90, and API standards—this drill weighs 482 lbs, balancing power and maneuverability.
Technical Details
| Description | |||
|---|---|---|---|
| Feeding | Hydraulic | ||
| Impact Energy: | 237 ft lbf | ||
| Rotation Torque: | 1844 lbft | ||
| Shanks: | R25/R32/R38/R51 ISCHEBEDECK TITAN 30/40/52 + C90 / API 2″ 3/8 / API 3″ 1/2 | ||
| Weight: | 482 lb |
