Description

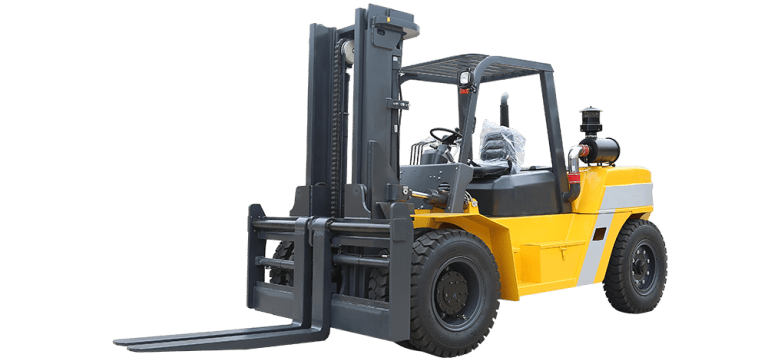

The diesel forklift is engineered for powerful performance and high efficiency in industrial logistics operations. Its core transmission and drive axle components are self-manufactured and precisely matched with a dedicated diesel engine, delivering outstanding traction and reduced fuel consumption. The forklift is equipped with a removable suspension frame for simplified maintenance access, along with an intelligent diagnostic system to streamline servicing and reduce downtime. Operator comfort is prioritized through a wide-view mast design and an adjustable safety seat, ensuring clear visibility and ergonomic operation.
To meet the requirements of varied logistics and warehouse environments, this forklift offers optional door frames and fork configurations that enhance load capacity and adaptability for different work conditions.
Key benefits include:
-
Precision-matched powertrain for low fuel consumption and strong traction.
-
Easy maintenance with removable suspension and intelligent diagnostics.
-
Flexible configuration options for forks and masts to suit diverse logistics needs.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-SFD100 | SMC-CE-SFD80 | SMC-CE-SFD70 |
| Load Weight(kg) | 10000 | 8000 | 7000 |
| Maximum lifting height(mm) | 4545 | 4545 | 4429 |
| Wheelbase(mm) | 2800 | 2800 | 2250 |
| External dimensions | 5780×2175×2760 | 5650×2175×2760 | 4852×1995×2500 |
| Load center distance(mm) | 600 | 600 | 600 |
| Front overhang(mm) | 700 | 700 | 632 |
| Forward/Backward Tilting Angle of Gantry(°) | 6°/12° | 6°/12° | 6°/12° |
| Emissions | EU stage ⅢA | EU stage ⅢA | EU stage ⅢA |
