Description

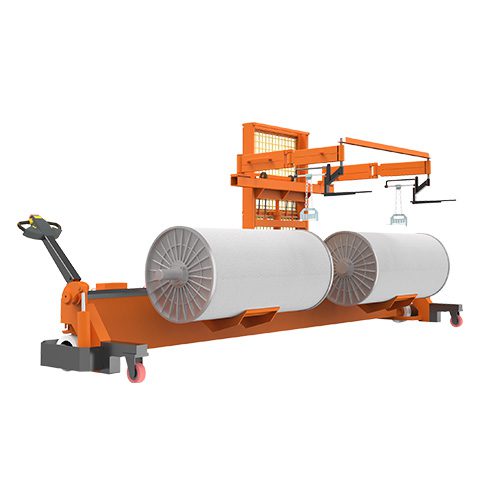

Electric Warp Beam Lift Trolley with harness mounting device is specifically designed for efficient handling of twin bottom beams, enabling seamless transport and insertion into weaving machines. It accommodates the harness system through a standard take-up for harness frames, contact rails, dividing rails, or even a complete warp stop motion. Powered by a durable AC motor, the system ensures low noise, zero maintenance, and eco-friendly operation. The gel battery system allows fast charging within 3–4 hours, offers twice the lifespan of conventional lead-acid batteries, and performs reliably in extreme temperatures from -50℃ to 50℃. Enhanced with electric power steering, the unit reduces manual effort by 80% compared to mechanical steering, while the side shift functionality allows safe and time-saving beam placement in confined workspaces. Ideal for modern textile environments, this electric trolley ensures safety, precision, and operational efficiency.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-MBT-03 | ||
| Carrying Capacity | 1000 - 2500kgs (Bottom Beam) | ||
| 400kgs (Heald Frame) | |||
| Lifting Height | 700mm (Bottom Beam) | ||
| 1820mm (Heald Frame) | |||
| Beam Flange Diameter | 800-1250 mm | ||
| Lifting / Driving | 3 Motors |
