Description

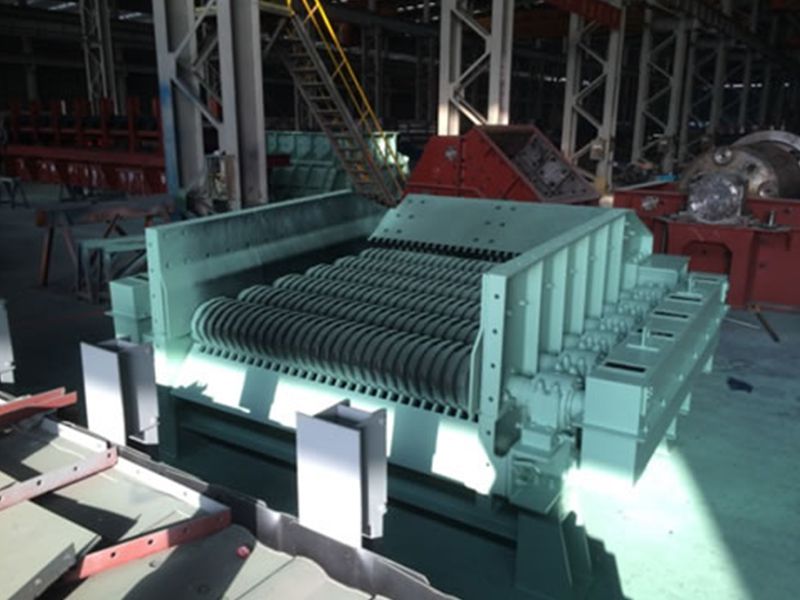

The Wobbler Feeder from SMC, also known as an apron pan feeder, is an advanced material handling solution designed to deliver continuous feeding while simultaneously performing material pre-screening. Ideal for pairing with various types of crushers, this feeder ensures a smoother, cleaner material flow by removing fines, mud, and impurities before the material reaches the crusher.
This pre-cleaning not only reduces the load on the crusher but also helps prevent clogging, thereby extending the service life of crushing equipment and increasing overall production efficiency. Perfectly suited for muddy and sticky materials, the wobbler feeder adjusts its output automatically according to the crusher’s load, optimizing performance in real time.
Key Features:
Dual-purpose: feeding and material pre-screening
Reduces impurities, improves material purity before crushing
Prevents crusher blockages and minimizes wear
Ideal for muddy, sticky, or clay-heavy materials
Auto-adjusting feed rate based on crusher load
Enhances crusher performance and production efficiency
Choose the SMC Wobbler Feeder to streamline your crushing process with cleaner feeds, reduced downtime, and smarter material flow management.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-1238 | SMC-1252 | SMC-1538 |
| Maximum feed size(mm) | 600 | 600 | 800 |
| Discharge size (mm) (10% of the remaining sieve) | 50-80 | 50-80 | 50-80 |
| Effective width of the trough(mm) | 1236 | 1236 | 1526 |
| Length of the trough(mm) | 3650 | 5160 | 3650 |
| Production capacity(t/h) | 150-350 | 150-350 | 350-450 |
