Coated Pipe

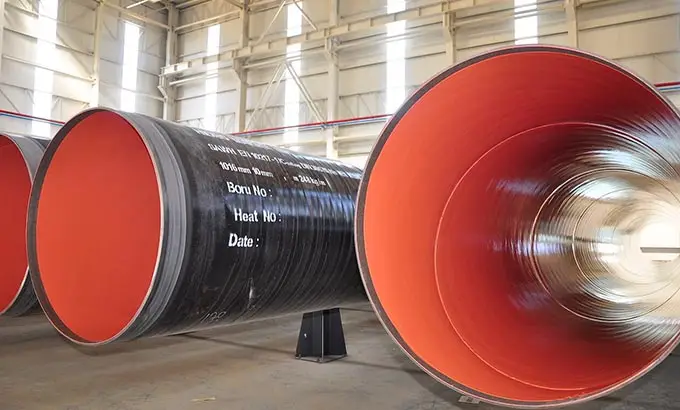

3LPE (Three-Layer Polyethylene) Coated Pipe is a high-performance solution for long-distance pipeline systems that require exceptional corrosion resistance, mechanical strength, and long service life. This advanced coating system consists of three distinct layers, each serving a critical function:

Layer 1: Fusion Bonded Epoxy (FBE) – Forms a strong, corrosion-resistant base that bonds directly to the steel surface.

Layer 2: Copolymer Adhesive – Provides excellent chemical adhesion between the epoxy and outer polyethylene layer.

Layer 3: Polyethylene/Polypropylene – Delivers robust protection against physical damage, UV exposure, and environmental wear.

With epoxy thickness ≥ 125 μm, adhesive ≥ 150 μm, and outer PE/PP layer ranging from 1.8 mm to 4.7 mm, the 3LPE system combines the chemical resistance of epoxy with the mechanical strength and impact resistance of polyethylene—making it ideal for buried pipelines and extreme environments.

Key Features:

Superior corrosion protection

Excellent impact, shock, and abrasive resistance

High electrical insulation and waterproofing properties

Reduces heat loss in buried pipeline applications

Strong anti-aging and long-term durability

Integrates the benefits of FBE and PE in a single system

Applications:

Long-distance transmission of natural gas, crude oil, and refined fuels

Urban gas distribution networks

Water and wastewater piping systems

Storage tanks, grooves, and utility conduits

Protective coating for power and telecommunication pipelines

Whether it’s a high-stakes energy project or critical utility infrastructure, 3LPE Coated Pipes offer the trusted performance and extended lifespan your operation demands.
