Description

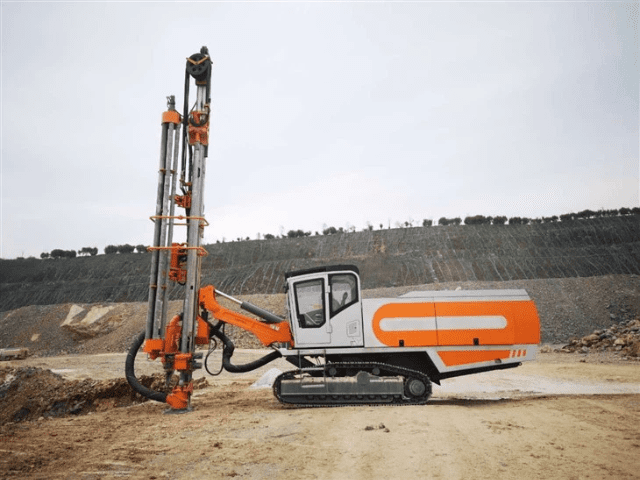

The SMC-TE-D470A is a high-performance down-the-hole drill rig designed for surface mining and large quarry applications. Featuring an enclosed, air-conditioned operator cabin, this rig offers enhanced operator comfort without compromising on ruggedness or drilling capability.
Built to deliver a strong balance of productivity and fuel efficiency, the SMC-TE-D470A is a reliable solution for demanding drilling environments. Its versatile design and powerful DTH system allow it to handle a wide range of surface drilling tasks with consistent performance.
Engineered for reliability and ease of operation, the SMC-TE-D470A is a dependable workhorse built to take on challenging geological conditions and deliver results under pressure.
Technical Details
| Description | |||
|---|---|---|---|
| hole diameter | φ 138 -165mm | ||
| tube diameter | φ 114mm | ||
| DTH hammer | 5''/6'' | ||
| engine type | caterpillar c11 | ||
| engine output power | 287kw | ||
| flushing air capacity | 21m3/m at 24 bar | ||
| operator cabin | high visibility | ||
| certificate | ROPS and FOPS | ||
| transport length | 11560mm | ||
| transport width | 2700mm | ||
| transport height | 3560mm | ||
| weight approx | 23560kg |
