All-in-One Spindle Type Drill Rig

All-in-One Spindle Type Drill Rig

Complete Integrated Core Drilling Solution for Geological Exploration

Product Overview

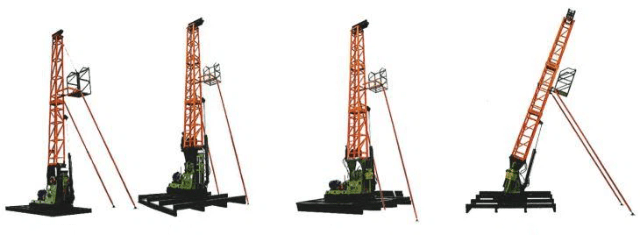

The SMC-DTH-,-4T, 42T and 44T is an all-in-one spindle-type core drilling rig designed for geological surveys, mining exploration, and inclined borehole drilling. By integrating a high-efficiency spindle rig with a hydraulically adjustable rod-type tower, this model simplifies setup while enhancing drilling precision, especially for steep-angle slant holes.

Built for rugged performance, the SMC-DTH-, 4T, 42T and 44T series features a modular and compact structure that ensures ease of transportation, quick disassembly, and efficient operation on-site. The tower angle can be flexibly adjusted, making the rig highly adaptable to complex terrain and directional drilling applications.

The hydraulic tower lifting/lowering system allows smooth mast positioning, supporting both vertical and large-inclination drilling tasks, especially in challenging or confined environments.

Designed for geological core drilling, mineral prospecting, and sloped drilling applications, the s, SMC-DTH-4T, 42T  -44T delivers a powerful, lightweight, and flexible solution for surface-based exploration missions.

Key Features and Advantages

Integrated Structural Design

The all-in-one configuration enhances stability, simplifies installation, and reduces transportation complexity. It is designed for quick mobilization and efficient site deployment.

High-Performance Spindle System

The robust spindle mechanism delivers strong rotational force, ensuring precise core drilling and efficient penetration in various geological formations.

Hydraulic Mast with Angle Adjustment

The hydraulic tower system supports flexible drilling angles, allowing operators to perform vertical as well as inclined boreholes with accuracy and control.

Heavy-Duty Construction

Manufactured with durable materials and reinforced components, the rig is built to withstand harsh terrain and continuous industrial use.

Easy Transport and Assembly

Its modular configuration allows for convenient disassembly and transport, making it suitable for remote and rugged project locations.

Technical Highlights

The All-in-One Spindle Type Drill Rig is available in multiple configurations to meet different project requirements.

• Drilling Depth: Up to 700–1400 meters (depending on model)

• Maximum Torque: Up to 3200 N·m

• Spindle Stroke: 600 mm

• Spindle Inner Diameter: Up to 93 mm

• Maximum Lifting Capacity: Up to 120 kN

• Feeding Force: Up to 90 kN

• Engine Power: Up to 37 kW
  These specifications ensure high penetration capability, stable drilling performance, and efficient energy utilization.

Applications

The All-in-One Spindle Type Drill Rig is widely used in:

• Geological core drilling

• Mineral exploration and mining surveys

• Hydrological and water well investigation

• Civil engineering site investigations

• Directional and inclined borehole drilling

• Surface drilling in challenging terrain
  Its adaptability makes it a preferred solution for contractors and exploration companies seeking reliable and efficient drilling equipment.

Why Choose the All-in-One Spindle Type Drill Rig

This spindle drill rig delivers a balance of power, flexibility, and operational simplicity. Its integrated design reduces labor requirements, improves productivity, and ensures consistent drilling accuracy. With strong torque output, hydraulic control precision, and rugged durability, it is engineered to meet modern exploration and drilling demands.

For companies seeking a high-performance geological drilling rig that combines efficiency, reliability, and versatility, the All-in-One Spindle Type Drill Rig is a dependable investment.
