Description

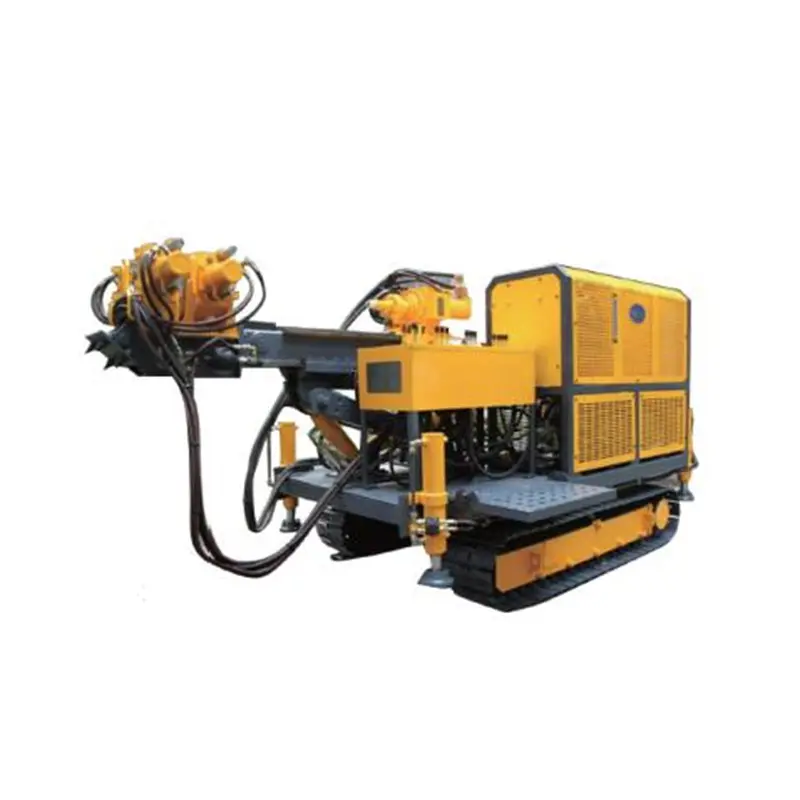

The Full Hydraulic Anchor Engineering Drilling Rig is primarily used for urban foundation pit support, controlling building displacement, and addressing geological disasters in engineering construction. The rig features a robust integral structure, equipped with a crawler chassis for enhanced mobility and a clamping shackle for secure operation.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-2B | SMC-2B-1 | SMC-3 |
| Drilling depth | 20-100m0 | 20-100m | 20-140m |
| Drilling diameter | 220-110mm | 220-110mm | 300-110mm |
| Overall dimension | 4300*1700*2000mm | Nil | 4300*1700*2000mm |
| Total weight | 4360kg | 2500kg | 4400kg |
| Double motor parallel connection | 58r/min (4000Nm) | 58r/min (4000Nm) | Nil |
| Double motor series connection | 116r/min (2000Nm) | 116r/min (2000Nm) | Nil |
| Type | single cylinder, chain belt | single cylinder, chain belt | single cylinder, chain belt |
| Lifting force | 38KN | 38KN | 63KN |
| Feeding force | 26KN | 26KN | 35KN |
| Lifting speed | 0-5.8m/min | 0-5.8m/min | 0-4.6m/min |
| Rapid lifting speed | 40m/min | 40m/min | 32m/min |
| Feeding speed | 0-8m/min | 0-8m/min | 0-6.2m/min |
| Rapid feeding speed | 40m/min | 40m/min | 45m/min |
| Feeding stroke | 2150mm | 2150mm | 2700mm |
| Mast move distance | 965mm | 965mm | 965mm |
| Lifting force | 50KN | 50KN | 50KN |
| Feeding force | 34KN | 34KN | 34KN |
| Clamping range | 50-220mm | Nil | 50-220mm |
| Chuck power | 100KN | Nil | 100KN |
| Crawler side driving force | 31KN.m | Nil | 5700N.m |
| Crawler travel speed | 2km/h | Nil | 1.8km/h |
| Model | y225s-4-b35 | Nil | Y250M-4-B35 |
| Power | 37KW | 37KW | 55KW |
| Lifting force | Nil | 50KN | Nil |
| Feeding force | Nil | 34KN | Nil |
