Description

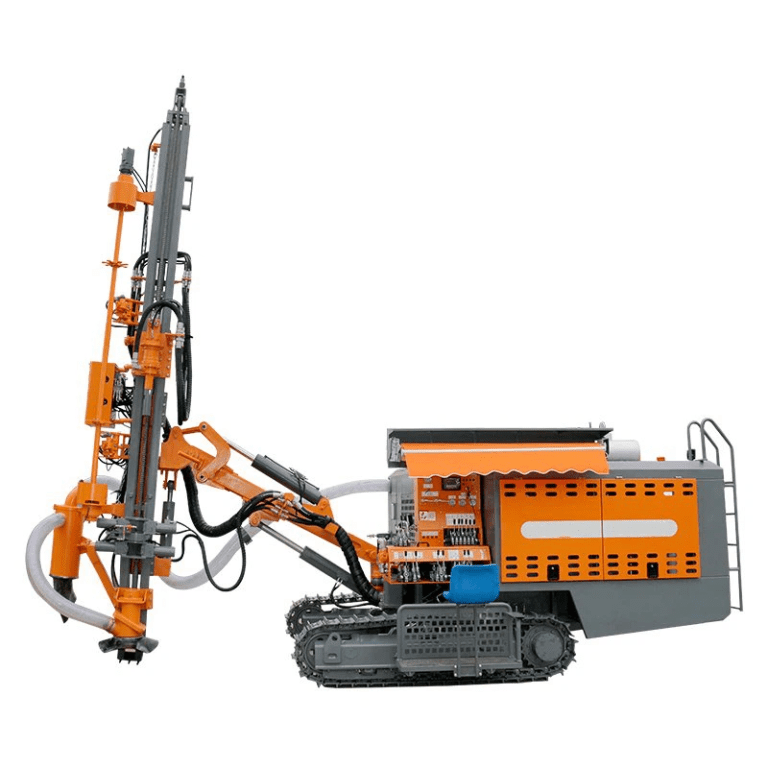

The SMC-TE-D535H is a high-performance integrated DTH drilling rig equipped with an automatic rod-changing system, designed for maximum reliability, safety, and operator comfort. Engineered for use in mining, quarrying, and demanding surface drilling environments, it combines rugged construction with advanced technology to deliver consistent and precise drilling results.
Built to endure harsh field conditions, the SMC-TE-D535H features a reinforced structural frame and a robust hydraulic system that ensures high-speed and accurate drilling, even in tough rock formations. Its high-pressure operation and powerful drive system make it ideal for deep-hole drilling in hard rock.
Operator safety is a core focus of the design. The fully enclosed cabin offers all-round visibility, protecting the operator from dust, noise, and environmental hazards, while providing clear sightlines to the drilling area. Safety features meet international standards to minimize operational risk.
Comfort is also prioritized. The operator’s cabin is spacious, climate-controlled, and ergonomically designed to reduce fatigue and support productivity during long shifts.
Thanks to its compact footprint and maneuverability, the SMC-TE-D535H is well-suited for confined or uneven terrain. Its versatility allows it to excel in a variety of applications, with particular strengths in mining and quarry drilling, where power, precision, and efficiency are critical.
Technical Details
| Description | |||
|---|---|---|---|
| Engine manufacturer | Cummins | ||
| Emission standards | Engine China III | ||
| Engine model | QSB5.9-C210-30 | ||
| Rated power | 154 kW (205 HP) | ||
| Air working pressure | 15 bar | ||
| Air flow FAD | 12 m³ / min | ||
| Hole range | Φ90 - 127mm | ||
| DTH hammer | 3.5” (inch) | ||
| Drill pipe size | Φ60 mm | ||
| Drill pipe handling capacity | 6+1 | ||
| Hole depth | 21m | ||
| Gradient | 30° | ||
| Track frame oscillation angle | +/-10° | ||
| Rotation torque | 1,950N.m | ||
| Rotation Speed | 60-120rpm | ||
| Fuel tank capacity | 250 L | ||
| Carrier ground clearance | 300mm | ||
| Drill pipe length | 3,000mm (start pipe 2,000mm) | ||
| Tramming speed | High speed 3km/h, Low speed 2km/h | ||
| Feed total length | 5,500mm | ||
| Feed force | 15kN | ||
| Feeding | Hydraulic cylinder - chain | ||
| Feed travel length | 3,488mm | ||
| Feed rate | 0.5m/s | ||
| Pull up force | 31kN | ||
| Traction force | 39kN | ||
| Length | 7,480mm | ||
| Width | 2,300mm | ||
| Height | 2,750mm | ||
| Weight (Options excluded) | 8,630kg |
