Description

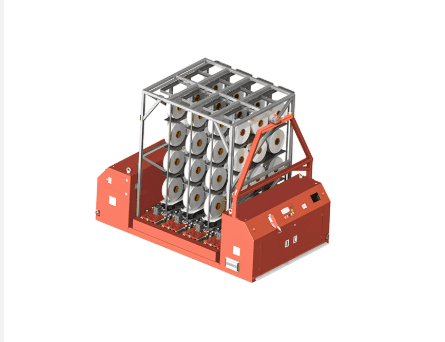

Customized SMC-TE-AGV – Intelligent Material Handling for Industrial Automation
This Autonomous Guided Vehicle (AGV) is engineered for use in automated logistics systems within industrial environments. It plays a pivotal role in Industry 4.0 intelligent factory operations, replacing manual labor to carry out complex, repetitive, or hazardous material handling tasks. Ideal for transferring goods between stations and warehouses, this AGV enhances safety, efficiency, and consistency across automated production lines.
🚀 Key Applications:
-
Automated logistics lines
-
Material transfer between stations and warehouses
-
Automatic docking in texturing workshop threading lines
-
Replacing manual handling in harsh or repetitive environments
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-AGV | SMC-TE-AVA-1.5 | SMC-TE-AGV-3.5 |
| Capacity | 100kg | 1500 kg | 3500 kg |
| Chassis Height to Ground | 30 mm | Nil | Nil |
| Weight | 300 kg | 1500 kg | 200 kg |
| Position Accuracy | -/+10mm | -/+15mm | -/+15mm |
| Turning Radius | 1350 mm | 1600 mm | 1600 mm |
| Guiding Way | Laser | Laser | Laser |
| Dimension (LxWxH) | 1146x870x712mm (cargo platform not including) | 2400x1400x2790mm | 3200x2600x3000mm |
| Roller Conveyor Rated Speed | 12m/s | Nil | Nil |
| Walk Way | Forward Backward Turn | Forward Backward Turn | Forward Backward Turn |
| Battery | Lithium Iron Phosphate Battery | Lithium Battery 48v/200AH | Lithium Battery 48v/200AH |
| Driving Way | Two-Wheel different | Double Steering Wheel | Double Steering Wheel |
| AGV Controlling System | Nil | Important system (NDC) | Important system (NDC) |
| Walk Speed | Nil | 0-40/min | 0-40/min |
