Description

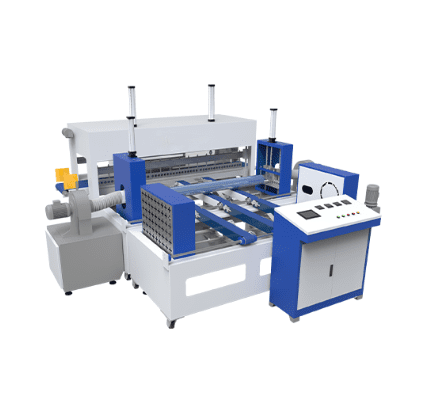

The Automated Fabric Roll Packing Solution (Compact Model) is a high-performance, space-saving system designed to revolutionize the packing process in textile manufacturing. With 771 units sold globally, this fully automated solution delivers a 7X boost in packing efficiency through features like vacuum and speedy packing, hot air blowing and punching, and smart classification for seamless sorting. It also offers easy integration with ERP/MES systems, enabling real-time data connectivity and process automation, making it ideal for modern textile operations aiming to optimize output, reduce labor, and enhance consistency.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-TE-180I | SMC-TE-180II | SMC-TE-240i |
| Range of Roll Width | 900-1800 mm | 900-1800 mm | 1200-2400 mm |
| Range of Roll Diameter | 100-400 mm | 100-600 mm | 100-400 mm |
| Packing Capacity | 5-7 rolls/min | 4-6 rolls/min | 4-6 rolls/min |
| Weight | 1500 kg | 1600 kg | 1600 kg |
| Power Consumption | 43 kw | 43 kw | 43.5 kw |
| Compressed Air Pressure | 5-7 bar | 5-7 bar | 5-7 bar |
