Description
SMC-TE-08 Series – Electric Batch Transport Trolleys (TE-08 / TE-08I)
The SMC-TE-08 Series offers intelligent and robust solutions for safely lifting and transporting large fabric batches from batching motions to storage zones. Designed for maximum load capacity, maneuverability, and operator visibility, these electric batch transport trucks meet modern textile production demands with high-efficiency components and customizable configurations.

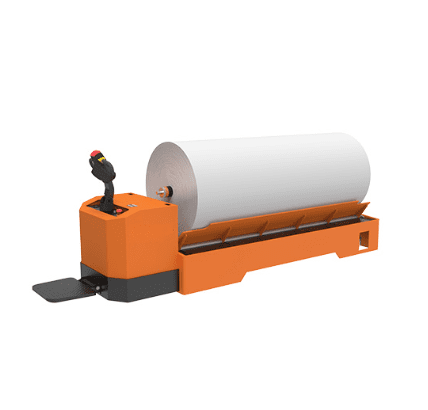

SMC-TE-08 – Electric Batch Transport Truck
Ideal for heavy-duty operations, this model is built to transport fabric batches up to 2500 kg with diameters of up to 1500 mm. The operator-first orientation ensures a clear line of sight during navigation for safer handling in narrow spaces.
Key Features:
Cradle length and height adjustable to match batch size and winder height
AC motor: Low noise, maintenance-free, eco-friendly
GEL battery: Fast charging (3–4 hours), long life, extreme temperature resistance (-50°C to +50°C)
Electric power steering: Reduces effort by 80% compared to mechanical steering
Smooth and safe travel via step-less control
Energy recuperation system during braking
Loading possible from both sides of the batching motion
SMC-TE-08I – Slim Model Electric Big Batch Transport Trolley
A more compact version of the TE-08, this Slim Model retains the same core functionality while being optimized for restricted spaces and narrow aisles in modern textile facilities. It’s ideal where space-saving without compromising load capacity is essential.
Like the standard model, it includes:
Adjustable cradle and height
Powerful AC drive with GEL battery support
Power steering and smooth maneuverability
Technical Details
Description | |||
---|---|---|---|
MODEL | SMC-TE-08 | SMC-TE-08I | |
Carrying Capacity | 2500 / 3000/ kgs | 2500 / 3000/ kgs | |
Beam Flange Diameter | 400 - 1500 mm | Nil | |
Lifting / Driving | 5 Motors | 3 Motors | |
Battery | 24 v / 200AH | 24 v / 200AH | |
Batch Diameter | Nil | 800 - 1500 mm |
