Description

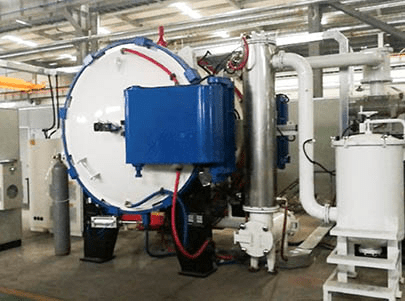

The Batch Type Purification Furnace is specifically designed for high-temperature purification of graphite powders, graphite components, and insulation materials. Utilizing precise thermal control and customizable batch processing, this furnace ensures effective removal of impurities to achieve high-purity results. Ideal for research labs and specialty manufacturing, it offers versatility, reliability, and exceptional thermal stability for a wide range of advanced material applications.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-050511 | SMC-HTE-060609 | SMC-HTE-101015 |
| Working Zone Size (D × H ) (mm) | 500×500×1100 | 600×600×900 | 1000×1000×1500 |
| Max. Temperature (°C) | 2200-3000 | 2200-3000 | 2200-3000 |
| Section Temperature Uniformity (°C) | ±5/±15 | ±5/±20 | ±5/±20 |
| Ultimate Vacuum (Pa) | 1-100 | 1-100 | 1-100 |
| Pressure Increase Rate (Pa/h) | 0.67 | 0.67 | 0.67 |
