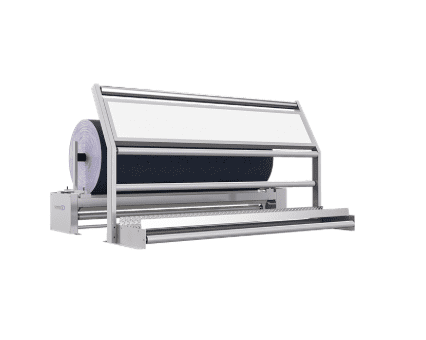

SMC-TE-01 Loom Batching Motion (Batching Unit)
A reliable batching solution designed for universal loom compatibility, the SMC-TE-01 offers compact roll winding, optional length measurement, and semi-automatic roll ejection—perfect for fabric producers aiming for efficiency and precision.
Key Features:
Multiple Model Options – For fabric batching with on-loom inspection
Automatic Synchronization – Seamlessly integrates with weaving machine operation
Positive Tension Adjustment – Enables precise tension control for various fabric types
Forward & Reverse Fabric Movement – Allows slight reverse handling for quality checks
Ergonomic Operator Platform – Built with anti-fatigue material and toe-guards
Compact & Tight Rolls – Batcher roll differential ensures optimized winding
Accurate Length Measuring (±0.01%) – With optional semi-automatic doffing
Selvedge Shifter (Optional) – For thick selvedges and improved roll quality
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-TE-01 | ||
| Fabric Width | 1.8-4.0 meters | ||
| Edge-alignment Error | ≤ 5mm | ||
| Speed | 0 - 1.15 m/min(Standard) Synchronized with Weaving Machines | ||
| Batching Diameter Max 1500mm | 1500mm (Standard:1200mm) | ||
| Electric Specs | 3PHASE 380V 50HZ (can be adjust to suit for diffrerent countries) |
