Description

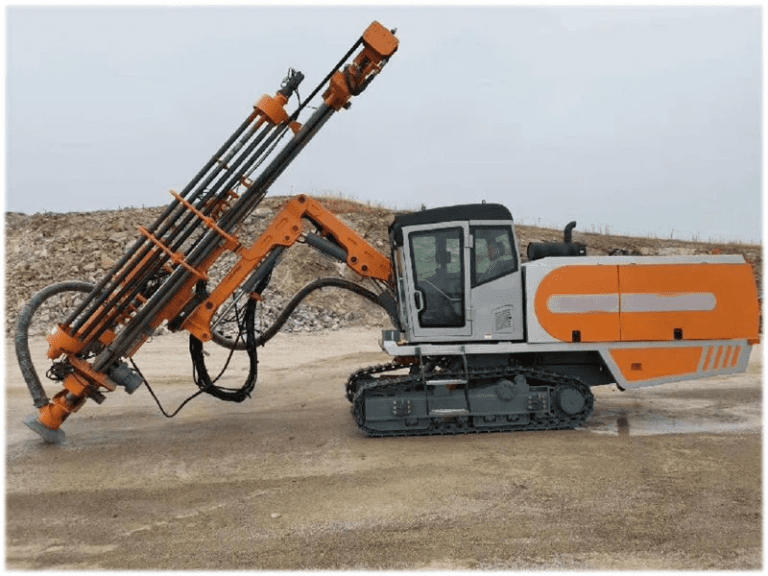

The SMC-TE-D440A is a high-performance surface drill rig engineered for civil engineering applications, including foundation drilling for buildings, bridges, roadworks, and structural reinforcements. Designed to enhance speed, accuracy, and overall drilling efficiency, this rig brings modern technology to the heart of construction operations.
Built with a durable frame and equipped with a powerful engine and advanced hydraulic system, the SMC-TE-D440A is capable of penetrating hard and compact ground materials with precision. Its control system is designed for simplicity and responsiveness, allowing operators to drill efficiently even in demanding site conditions.
The rig’s fast drilling capabilities help accelerate project timelines by reducing downtime and improving productivity across large and small civil infrastructure jobs. Its precision ensures stable foundations and structural integrity, which are critical in civil construction where accuracy directly impacts long-term safety and performance.
Ease of operation and maintenance are built into the design. The rig’s user-friendly interface and accessible maintenance points reduce operator fatigue and service time, making it a cost-effective and dependable solution for daily operations.
The SMC-TE-D440A delivers the power and precision required in modern civil engineering, helping contractors complete projects efficiently, safely, and with confidence in the quality of their work.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | ¢90mm-130mm | ||
| Hole depth | 28m (6+1 drill pipes) | ||
| Drill pipe size | 68 or 76mm（Length 4m） | ||
| Engine | Cummins QSC8.3, Rated power 194KW | ||
| Air compressor | 16m³/min, 20bar | ||
| Rotation torque | 2800N·m | ||
| Pull up force | 31KN | ||
| Feed travel length | 4.6M（for 4m pipe） | ||
| Cab | ROPS&FOPS, heating and cooling air conditioner | ||
| Tramming speed | 3Km/h | ||
| Gradeability | 25° | ||
| Weight | 15t | ||
| Ground clearance | 450mm | ||
| Fuel tank capacity | 350L |
