Description

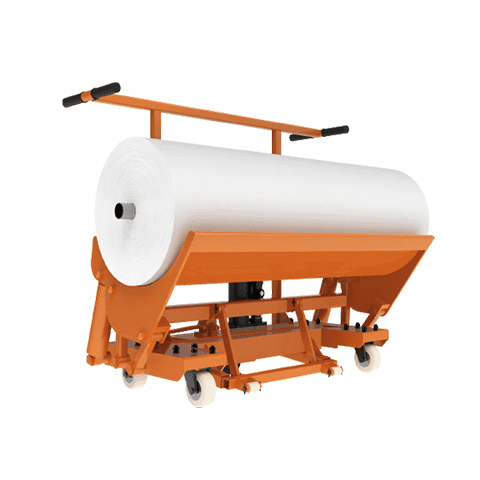

The SMC-TE-HBT-07 Cloth Roll Doffing Trolley is a hydraulic-type solution built for efficient and ergonomic fabric roll handling. With a lifting height of 585mm, it is capable of supporting cloth rolls up to 500mm in diameter and 500kgs in weight. This robust trolley requires no installation—it’s ready to use straight out of the box, making it ideal for fast-paced production environments. Designed for maximum convenience and reliability, it significantly improves fabric transfer operations while reducing manual strain.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-HBT07 | SMC-TE-HBT07I | SMC-TE-HBT07II |
| Carrying Capacity | 300-500kgs | 300 kgs | Up to 1000kgs |
| Hydraulic Cylinders | Two | One | Two |
| Centre Height | 585mm | 1100mm | 950mm |
| Cloth Roll Diameter | 500mm | 500mm | Up to 1000mm |
| Hydraulic Unit | 1 | 1 | 1 |
