Description

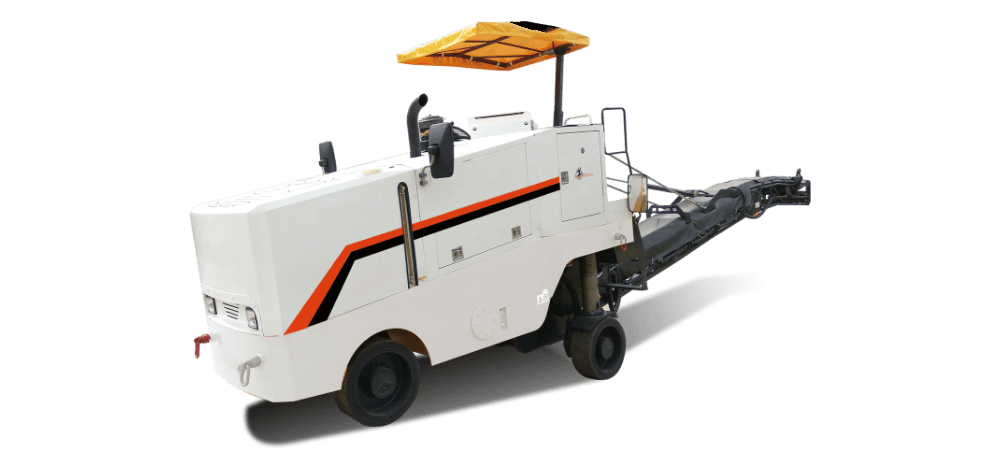

Cold Milling Machine is a high-performance surface restoration system designed for efficient, precise milling of asphalt and concrete pavements. Engineered with a powerful mechanical drive and industry-grade milling tools, this machine delivers deep-cut capability, high milling precision, and long-term operational reliability, even under the most demanding site conditions.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-SMT100MC6 | SMC-CE-SMT50C6N | |
| Engine power(kW/rpm) | 160/2200 | 103/2300 | |
| Operating weight(kg) | 15200 | 6600 | |
| Maximum milling width(mm) | 1000 | 500 | |
| External dimensions | 12210*2385*3445 | 3340*2130*2395 | |
| Engine model | Shangchai SC9D220G3 | WeichaiWP4.1 | |
| Maximum milling depth(mm) | 300 | 180 | |
| Number of milling tools | 94 | 54 | |
| Milling diameter including tools(mm) | 980 | 670 | |
| Conveyor belt width(mm) | 500 | Nil | |
| Operating speed(m/min) | 0-30 | 0-50 | |
| Travel speed(km/h) | 0-8.0 | 0-8.0 | |
| Emissions | Eu stage IIIA | Eu stage IIIA |
