Description

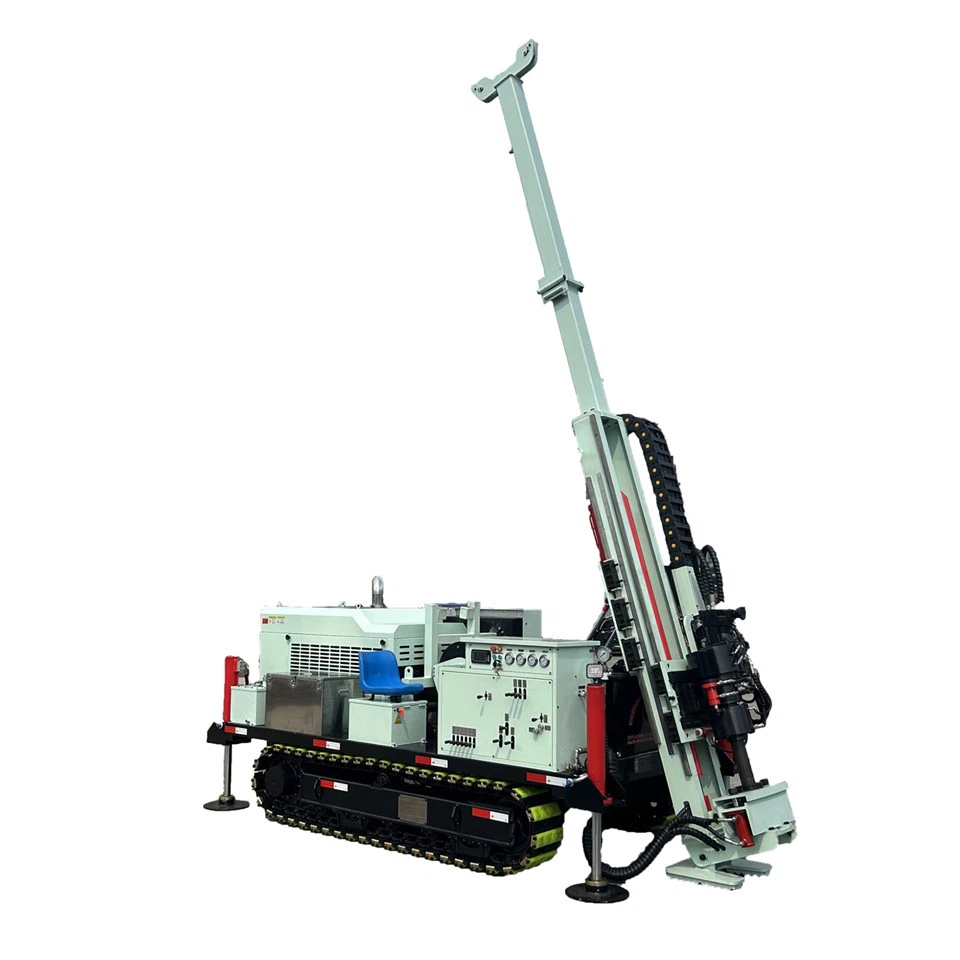

The SMC-DTH-LD1200A is a high-performance, fully hydraulic core drilling rig developed by Wuxi Xizuan Geological Equipment Co., Ltd. through in-depth study of international technologies and extensive field experience. Designed for demanding geological exploration tasks, this rig offers exceptional drilling capacity, modular construction, and robust reliability.
Equipped with a powerful Cummins QSB5.9-C180-33 diesel engine, the SMC-DTH-LD1200A delivers up to 133 kW, allowing it to efficiently reach drilling depths of up to 1500 meters (BQ rods). Its structure features advanced hydraulic systems, wireless remote-controlled crawler mobility, and an ergonomic operating panel for improved user experience. With a low center of gravity, wide mast angle adjustability, and modular parts for quick maintenance, the SMC-DTH-LD1200A ensures high productivity in complex and remote terrain.
Whether used for mineral exploration, geological surveys, or infrastructure foundation assessment, this drill rig meets modern demands for performance, efficiency, and operator comfort.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-LD1200A | ||
| Manufacturer | Wuxi Xizuan Geological Equipment Co., Ltd. | ||
| Engine Model | Cummins QSB5.9-C180-33 | ||
| Engine Type | 6-cylinder, 5.9L, National III emissions | ||
| Power Output | 133 kW | ||
| Max Engine Speed | 2200 rpm | ||
| Drilling Capacity (BQ Rod) | 1500 m | ||
| Drilling Capacity (NQ Rod) | 1200 m | ||
| Drilling Capacity (HQ Rod) | 950 m | ||
| Drilling Capacity (PQ Rod) | 650 m | ||
| Hoist RPM | Stepless 0–1600 rpm | ||
| Max Torque | 1700 Nm | ||
| Spindle Configuration | Through-shaft | ||
| Max Spindle Lifting Capacity | 180 kN | ||
| Max Feeding Power | 50 kN | ||
| Hoist Capacity (Single Wire) | 10 kN (wireless control) | ||
| Steel Wire Diameter | 6 mm | ||
| Steel Wire Length | 1300 m | ||
| Mast Adjusting Angle | 0° – 90° | ||
| Drilling Angle Range | 45° – 90° | ||
| Feeding Stroke | 1800 mm | ||
| Slippage Stroke | 800 mm | ||
| Weight | 6.5 Tons | ||
| Dimensions (L×W×H) | 4850 × 2100 × 2200 mm | ||
| Transport Mode | Crawler (wireless remote-controlled steel track) | ||
| Mud Pump Model | BW-160 | ||
| Lower Holder Clamping Scope | 55.5 mm – 118 mm | ||
| Hydraulic Components | Domestic brand parts (main valve, pump, motor) | ||
| Design Features | Modular, advanced, quick part replacement, aesthetic design | ||
| Operator Comfort | Low center of gravity, spacious workspace, good visibility |
