Description

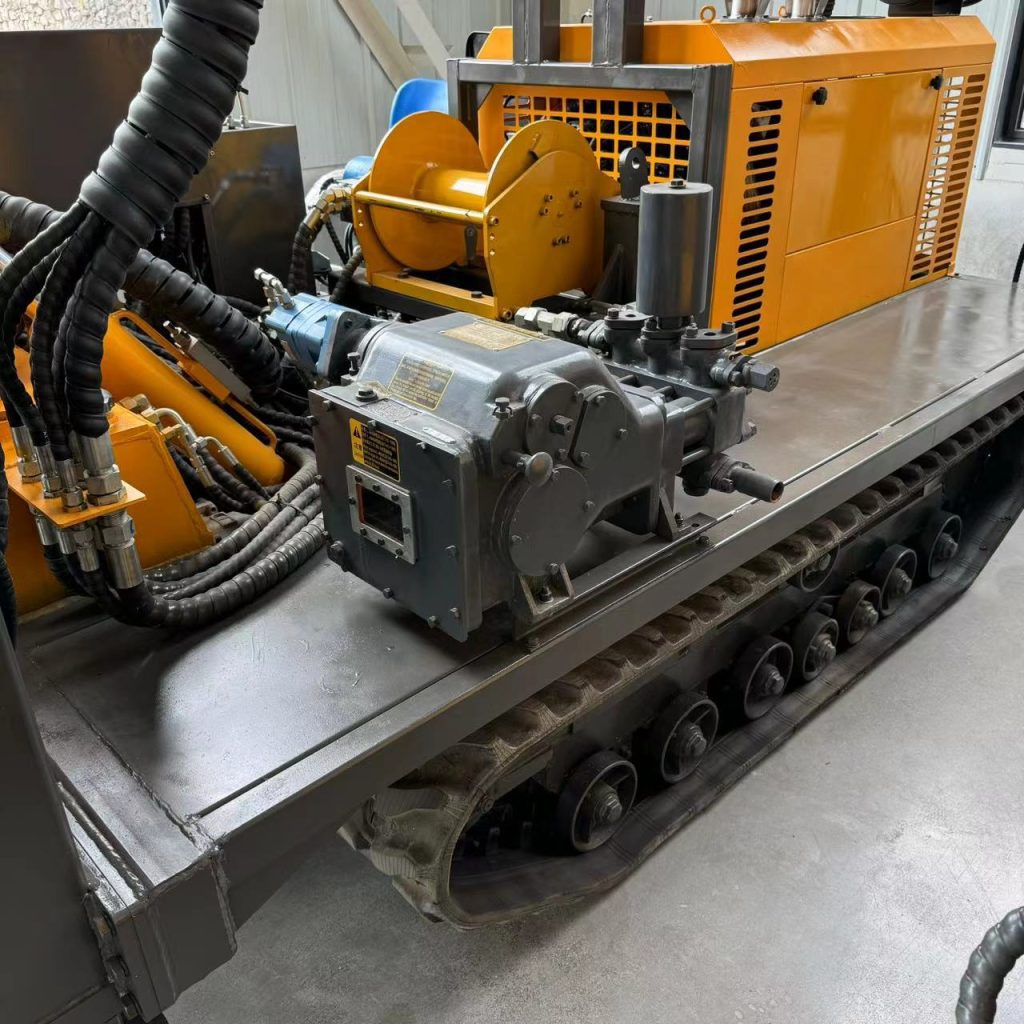

Explore our fully hydraulic core drilling rig, specifically designed for efficient coring and drilling in solid ore deposits. This equipment utilizes advanced hydrostatic transmission, simplifying the mechanical chain for enhanced reliability. Benefit from its lightweight design, high operational efficiency, and user-friendly operation for all your core sampling needs.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-YX10 | ||
| Drilling capacity | |||
| BTW (m) | 1400 | ||
| NTW (m) | 1200 | ||
| HTW (m) | 1000 | ||
| PQ (m) | 600 | ||
| Hydraulic system | 32+20+20+20 MPA | ||
| Cooling method | Secondary air cooling + primary water cooling | ||
| Engine parameters | Weichai 129Kw six-cylinder | ||
| Rated power | 129 Kw | ||
| Rated speed rpm | 2400 | ||
| Power head parameters | 2600 N.m | ||
| Maximum speed rpm | 1400 | ||
| Feed stroke m | 2000/3500 (optional) | ||
| Through hole diameter mm | 95 | ||
| Lifting force kN | 360 | ||
| Thrust force kN | 180 | ||
| Rope core winch parameters | 1200 m | ||
| Lifting Lift kN | 24 | ||
| Lifting speed m/min | 110 | ||
| Wire rope diameter mm | 6 | ||
| Mast parameters /Total height/m | 8.5 | ||
| Drilling angle ° | 0-90 | ||
| Sliding stroke mm | 1200 | ||
| Gripper parameters | Through hole 130mm | ||
| Track parameters | 30 angle ° | ||
| Maximum driving speed km/h | 2 | ||
| Transportation dimensions / Length * width * height mm | 5600*2200*3000 | ||
| Total machine weight | 7.3 (t) |
