Description

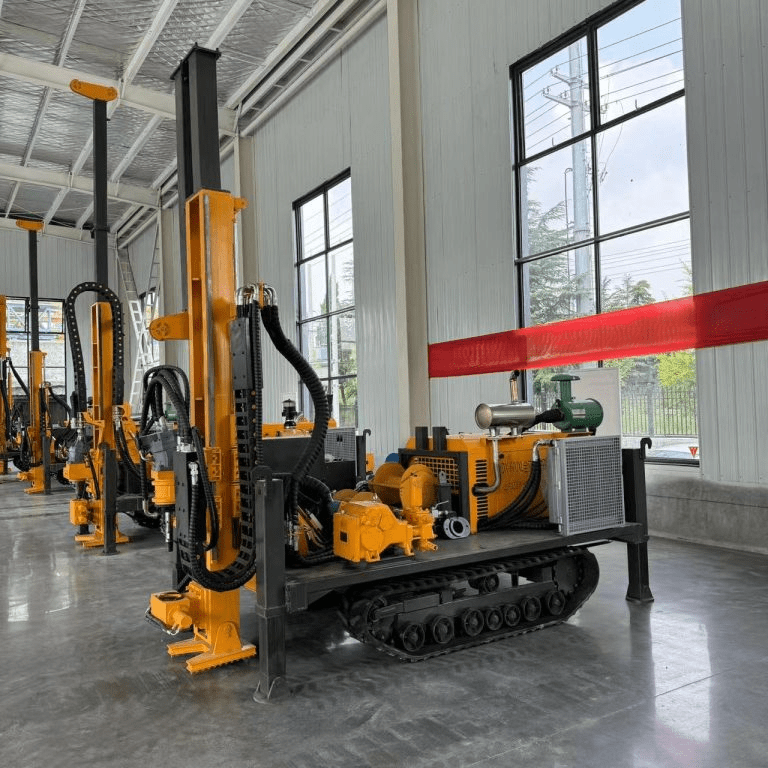

Discover our fully hydraulic core drilling rig, a reliable solution for coring and drilling in solid ore deposits. Featuring advanced hydrostatic transmission, this equipment offers a simplified mechanical design. Benefit from its lightweight construction, high operational efficiency, and ease of use for your core sampling projects.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-YX6 | ||
| Drilling capacity | |||
| BTW | 650 (m) | ||
| NTW | 600 (m) | ||
| HTW | 300 (m) | ||
| PQ | (m) | ||
| Rated pressure of hydraulic system | Mpa 32+16 | ||
| Cooling method | Air cooling and water cooling | ||
| Engine parameter model | Yuchai four-cylinder 92kW | ||
| Rated power | 92 Kw | ||
| Rated speed | 2200 rpm | ||
| Power head parameters Maximum torque | N.m 1400 | ||
| Maximum speed | 1400 rpm | ||
| Feed | 2 m | ||
| Through hole diameter | 95 mm | ||
| Lifting force | 240 kN | ||
| Thrust force | 120 Kn | ||
| Rope coring winch parameters Rope capacity0 | 800 m | ||
| Lifting force | 15 kN | ||
| Lifting speed | 110 m/min | ||
| Wire rope diameter | 5 mm | ||
| Mast parameters Overall height | 6.1 m | ||
| Drilling angle° | 45-90 | ||
| Sliding stroke | 800 mm | ||
| Gripper parameters | BQ/NQ/HQ/PQ | ||
| Track parameters Maximum climbing angle ° | 25 | ||
| Maximum driving speed | 2 km/h | ||
| Transport dimensions Length * width * height | 4500*1900*2300 mm | ||
| Machine weight | 4.5 (t) |
