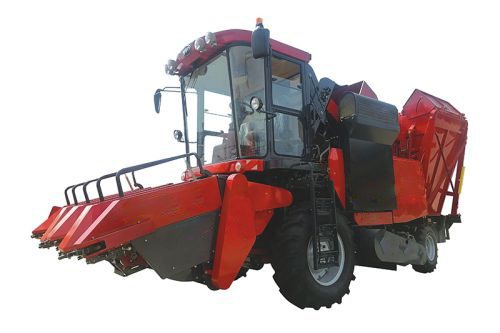

Description
Fuel injectors and the high-pressure common rail multimode engine ensure high efficiency while consuming less fuel.
The corn header with its unique design offers quick corn cutting and collection, adjustable for various row spaces.
A cutter at the front end and a chopper in the middle part effectively cut straw and stubble, recycling them as fertilizer.
Blowers remove debris, remaining chaff, and straw, ensuring excellent cleaning performance.
A backup camera and a corn tank camera enhance safety and efficiency by allowing better monitoring of the situation.
The hydrostatic drive system, consisting of “one hydraulic pump and one motor,” is reliable and durable.
Technical Details
| Description | |||
|---|---|---|---|
| Model | 4YZ-3D2 | 4YZ-4D3 | |
| Dimensions (L*W*H) (mm) | 6700*2360*3455 | 6830*2745*3460 | |
| Weight (kg) | 6400 | 7500 | |
| Engine rate (kW) | 132.3 | 161.7 | |
| Minimum ground clearance (mm) | 280 | 280 | |
| Corn rows | 3 | 4 | |
| Row space range (mm) | 550-580 | 550-580 | |
| Harvesting speed (km/h) | 1.55～7 | 1.55～7 | |
| Harvesting output (hm2/h) | 0.2-0.5 | 0.2-0.5 | |
| Drive mode | Mechanical | Mechanical/hydraulic | |
| Corn tank size (m³) | 2.2 | 2.7 | |
| Unloading height (mm) | 2900 | 2900 | |
| Fuel tank size (L) | 260 | 300 |
