Description

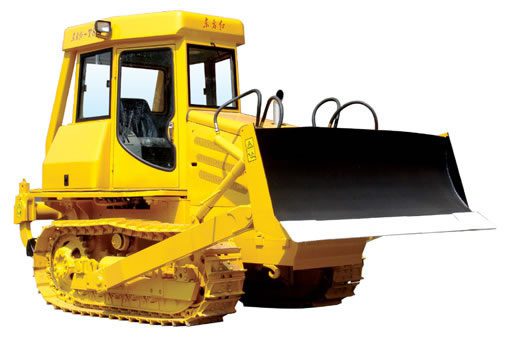

As a leading manufacturer and supplier of crawler bulldozers and heavy construction equipment, SMC offers a range of high-quality machinery, including road rollers, motor graders, wheel loaders, and backhoe loaders. Our crawler bulldozer is equipped with a powerful dozer blade at the front, designed to push materials on construction sites effectively.
With over 50 years of experience in manufacturing bulldozers and handling construction machinery, we are committed to delivering high-quality products at competitive prices. Our extensive expertise ensures that each piece of equipment meets the durability, efficiency, and reliability standards required for demanding construction tasks.
Technical Details
| Description | |||
|---|---|---|---|
| Models | SMC-CE-80 | SMC-CE-100G | SMC-CE-120N |
| Total weight | 8600kg | 10400kg | 13000kg |
| Max. towing force | 69kN | 95kN | 115kN |
| Engine model | LR4A3Z-22 | LR6A3-23 | LR6A3Z-20 |
| Engine rated power/speed | 70/2200kW/r/min | 81/2300kW/r/min | 93/2000kW/r/min |
| Fuel consumption of the engine | ≤246g/km.h | ≤242g/km.h | ≤246g/km.h |
| Engine max. torque | 313.9N.m | 400N.m | 526N.m |
| Forward Ⅰ~Ⅳ gears | 2.4~10.4km/h | 2.6~10.3km/h | 2.4~10.6km/h |
| Reverse Ⅰ~Ⅱ gears | 4.9~8.9km/h | 3.7~6.7km/h | 3.9~7.1km/h |
| Caterpillar track width | 400mm | 450mm | 500mm |
| Ground pressure | 53kPa | 54.4kPa | 51kPa |
| Overall dimension(L×W×H) | 4200×2480×2740mm | 4190×2908×2982mm | 4535×3147×2900mm |
| Bulldozer blade (W×H) | 2480×922mm | 2908×960mm | 3147×957mm |
| Max. lifting height of dozer blade | 736.5mm | 830mm | 955mm |
| Max. digging depth of dozer blade | 370mm | 370mm | 380mm |
| Towing equipment/ripper (optional) | Fixed/3-teeth | Fixed/3-teeth | Fixed/3-teeth |
