Description

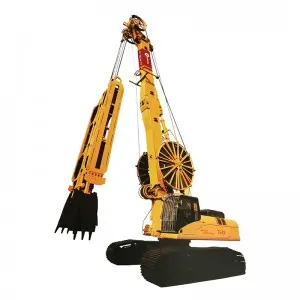

The SMC-CE-TG series offers premier Hydraulic Diaphragm Wall Grabs engineered for precision and power in complex underground and foundation construction. Featuring the versatile TG50, TG60, and TG70 models, this equipment is the definitive solution for a wide range of geotechnical applications, including diaphragm wall construction, deep excavation support, dam anti-seepage works, and foundation pits for major infrastructure like rail transit. Whether constructing dock cofferdams or supporting urban development, our hydraulic grabs deliver the robust performance required to ensure project stability and success in challenging ground conditions.
As a key product line from the globally recognized SINOVO International, the SMC-CE-TG series embodies our commitment to world-class engineering and reliability. Renowned across global markets for their operational efficiency, durability, and adaptability, these grabs are trusted by contractors for their long service life and consistent performance. By integrating innovative design with heavy-duty construction, the TG series provides a powerful and dependable solution, ensuring maximum productivity for any significant foundation or underground construction project
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-TG50 | SMC-CE-TG60 | SMC-CE-TG70 |
| Width of trench | 600 - 1500mm | NIL | 800 - 1800mm |
| Depth of trench | 80m | NIL | 80m |
| Max. pull force | 600kN | 600kN | 700kN |
| Volume of grab bucker | 1.1-2.1 m³ | NIL | 1.1-2.1 m³ |
| Undercarriage Model | CAT/Self undercarriage | NIL | CAT336D/self undercarriage |
| Engine power | 261KW/266kw | NIL | 261KW/266kw |
| Pull force of main winch (The first layer) | 300kN | NIL | 350kN |
| Extendable undercarriage (mm) | 800mm | NIL | 800mm |
| Track shoe width | 3000-4300mm | 800mm | 3000-4300mm |
| System Pressure | 35Mpa | 35Mpa | 35Mpa |
| Groove thickness of grab bucket " open width / m | NIL | 0.6-15*2.8 | NIL |
| Groove depth / m | NIL | 70 | NIL |
| Single rope pulling force of winch / kw | NIL | 266/1900rmp | NIL |
| System flow / L / min | NIL | 2*380+152 | NIL |
| Diesel engines | NIL | CUMMINS Q SMI 1 | NIL |
| Outer track distance / mm | NIL | 3450-4600 | NIL |
| Traction / KN | NIL | 700 | NIL |
| Walking speed / km / h | NIL | 2.2 | NIL |
| Host weight / t | NIL | 92 | NIL |
| Grab weight ( without soil ) / t | NIL | 15-28 | NIL |
