Description

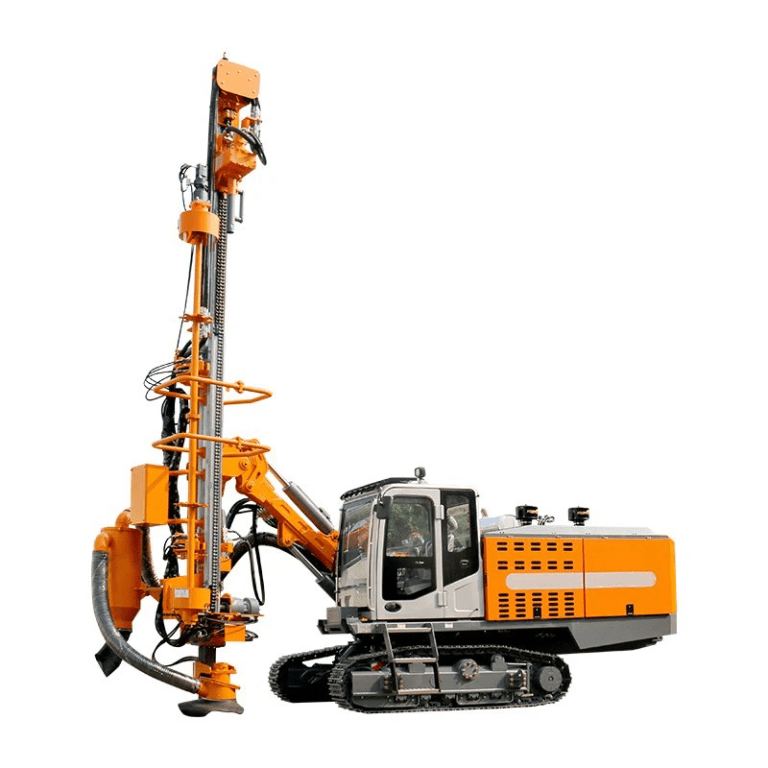

The SMC-TE-453T is a fully integrated surface drill rig designed for precision and performance in dimension stone and quarrying operations. Built with a compact, all-in-one frame, it houses the air compressor, hydraulic system, and drill arm together—simplifying transport, setup, and on-site mobility.
Powered by a fuel-efficient diesel engine with hybrid support, the SMC-TE-453T significantly reduces fuel consumption and emissions while maintaining consistent drilling power. Its automatic leveling system ensures stability on uneven terrain, providing a safer and more comfortable working platform for operators.
Designed for durability and field reliability, the SMC-TE-453T is constructed to withstand challenging site conditions. Safety is prioritized through key features such as an automatic dust collection system, real-time monitoring, and an emergency stop system to ensure operator protection.
With its combination of energy efficiency, safety, and versatility, the SMC-TE-453T is a smart and dependable solution for stone processing sites and quarrying operations that demand consistent performance and ease of use.
Technical Details
| Description | |||
|---|---|---|---|
| Engine | (Yuchai)YC6L310-H 228 kW @ 2,200 rpm | ||
| Hole Depth | 28m | ||
| Drill Pipe Storage | 6+1 | ||
| Hole Range | φ90 - 138 mm | ||
| Drill Pipe Diameter | φ76×4,000 mm | ||
| DTH Hammer | 3.5＂/4＂/5＂ | ||
| Rotation Torque(Max.) | 2,800 N.m | ||
| Pull Up Force ( Max.) | 25 kN | ||
| Working Pressure | 22 bar | ||
| F.A.D | 18 m3/min | ||
| Tramming Speed | High Speed:3 km/h Low Speed:2 km/h | ||
| Gradeability | 30° | ||
| Track Frame Oscilation | 士10° | ||
| Total Weight | 13,640 kg | ||
| Transportation Dimensions(L×W×H) | 9,300×2,360×3,000 mm | ||
| Auto pipe handling system | Standard |
