Description

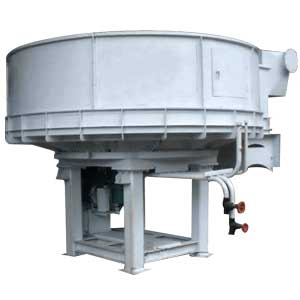

The Disc Feeder (also known as a disk feeder) is a robust and continuous volumetric feeding device, ideal for controlled material handling in cement plants, chemical factories, power stations, and other bulk-processing industries. Designed for uniform and steady material discharge, this feeder efficiently handles non-sticky, low-flowability materials under 20 mm in size—including cement, clinker, coal powder, limestone, clay, and ore.
By utilizing a rotating disc and adjustable scraper mechanism, the feeder pulls material from a storage container and delivers it precisely to the next stage of processing.
Available in Four Configurations:
Open Hanging Type (DK)
Closed Hanging Type (DB)
Open-Seat Type
Closed-Seat Type
Key Features:
Consistent feeding: Ensures continuous and uniform discharge
Adjustable flow: Regulating gate controls material layer thickness
Low noise & simple design: Easy to maintain and operate
Durable construction: Equipped with hardened face gear for long-term use
Versatile material compatibility: Suitable for powders, granules, and small block materials
SMC’s disc feeders are widely recognized and trusted for their reliability, performance, and compact design. As a vital piece of cement equipment, they are the preferred choice for efficient and accurate material handling.
Technical Details
| Description | |||
|---|---|---|---|
| Model | DKM60 | DKM80 | DKM100 |
| Specification(mm) | φ600 | φ800 | φ1000 |
| Weight(t) | 0.46 - 0.6 | 0.56 -0.67 | 0.89-0.95 |
| Capacity(t/h) | 0.043-0.244 | 0.15-0.96 | 0.345-2.22 |
| Maximum Particle Size(mm) | 25 | 30 | 40 |
| Maximum Rotation Speed(r/min) | 0.5 | 1 | 1 |
