Description

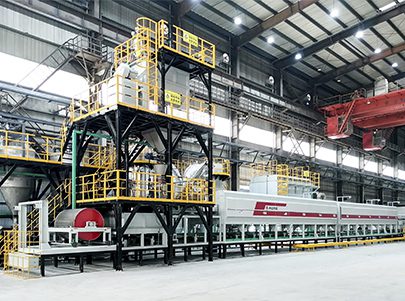

An advanced integrated process system has been developed, centered around key technologies including shredding and crushing, low-temperature electrolyte drying, organic pyrolysis, material separation, and multi-stage high-value metal roasting. This system incorporates multi-stage composite treatment, precise control over temperature and flow fields, continuous and automated equipment operation, and coordinated management of multi-pollutant emissions throughout the reaction process. The core of this system is designed around the combined processes of low-temperature drying of electrolytes, pyrolysis of organic compounds, and efficient roasting of high-value metals. This enables the comprehensive treatment of waste power batteries, achieving full separation of black mass, copper, and aluminum, with a focus on the preferential extraction of lithium through the selective roasting of black powder.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-1500/200-14 | ||
| Raw material type | Lithium battery crushing material ,Aluminum granules, battery powder material , battery wet electrode powder, phosphate iron lithium waste cathode sheet | ||
| Annual output | Customized in accordance with treatment output | ||
| Organic remove rate | ≥99.5% | ||
| Oxygen content | <1% | ||
| Type of heating | Electrical/Gas heating | ||
| Pyrolysis temperature | 150-700℃(Controllable) | ||
| Temperature uniformity of section area inside furnace | ±5℃ | ||
| Floor space | Approx. 600㎡(Annual output:10,000ton) | ||
| Emission compliance | The exhaust is compliance with the project local highest emission standard |
