Description

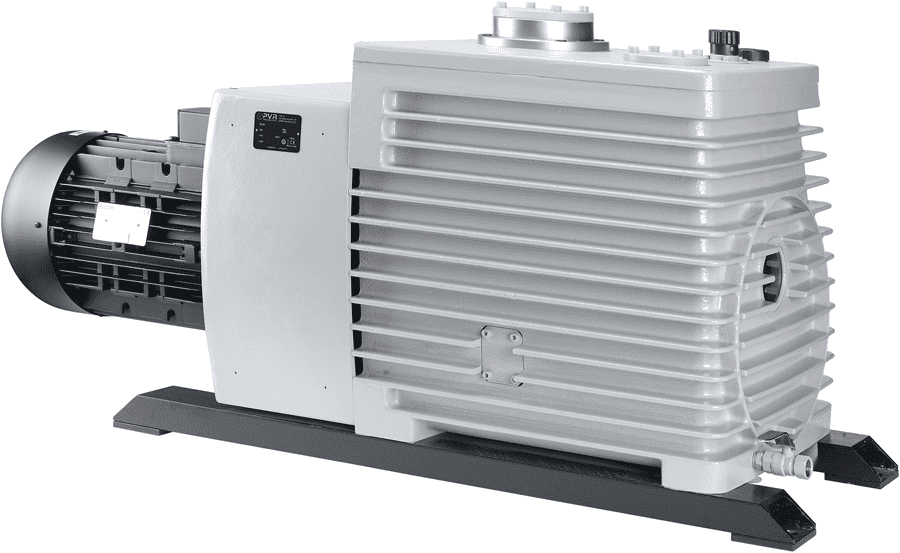

The SMC-HTE-PHV 120 K, PHV 180 K, and PHV 270 K are two-stage rotary vane vacuum pumps with oil bath lubrication, designed for high-performance applications requiring deep vacuum levels. These pumps are flange-mounted to an electric motor via an elastic coupling and cooled by forced air using a centrifugal fan.
They feature an integrated check valve to prevent oil backflow and air return during shutdown, and an adjustable gas ballast to minimize condensation when handling small amounts of vapor.
Suitable for evacuating closed systems or maintaining a constant vacuum up to 1 × 10⁻³ mbar (absolute), the PHV series ensures stable, efficient, and long-lasting operation for demanding industrial and laboratory applications.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-PHV 120 K | SMC-HTE-PHV 180 K | SMC-HTE-PHV 270 K |
| Pumping speed m³/h (50Hz) | 120 | 180 | 270 |
| Pumping speed m³/h (60Hz) | 144 | 216 | 324 |
| GB final pressure closed (abs) mbar | ≤ 1 x 10-3 | ≤ 1 x 10-3 | ≤ 1 x 10-3 |
| Motor power kW (50hz) | 4 | 5,5 | 7,5 |
| Motor power kW (60hz) | 4 | 5,5 | 7,5 |
| Number of laps rpm (50hz) | 1450 | 1450 | 1450 |
| Number of laps rpm (60hz) | 1750 | 1750 | 1750 |
| Maximum permissible H2O vapor pressure | 27 | 27 | 27 |
| Admissible quantity of H2O vapor kg/h | 2,37 | 3,55 | 5,33 |
| Lubricant charge | 11 | 16 | 17 |
| Sound pressure level dB(A) (50hz) | n.d. | n.d. | n.d. |
| Sound pressure level dB(A) (60hz) | n.d. | n.d. | n.d. |
| Dimensions L x B x H mm (50hz) | 974x320x465 | 1101x400x528 | 1179x400x598 |
| Dimensions L x B x H mm (60hz) | 974x320x465 | 1101x400x528 | 1179x400x598 |
| Weight kg (50hz) | 172 | 290 | 358 |
| Weight kg (60hz) | 172 | 290 | 358 |
| Connections | |||
| Inlet | ISO 63 | ISO 63 | ISO 63 |
| Outlet | ISO 40 | ISO 40 | ISO 40 |
