Description

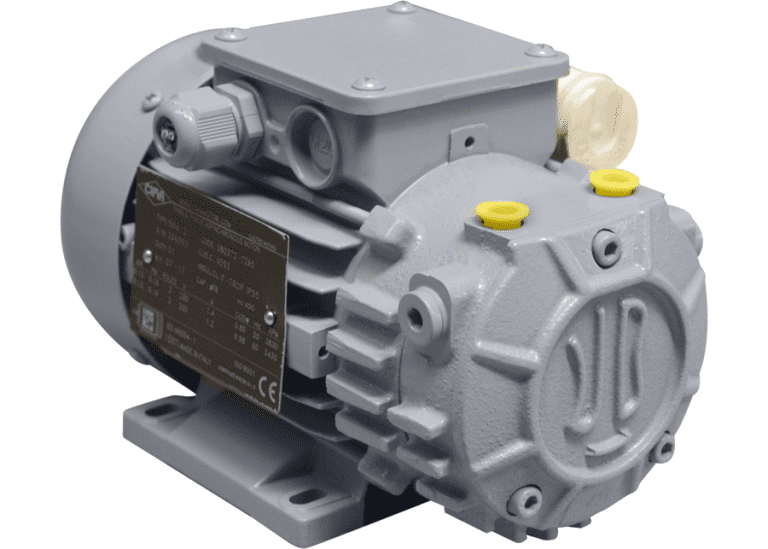

The SMC-HTE-VD 3 is a single-stage dry rotary vane vacuum pump, directly coupled to an electric motor for compact and efficient operation. It is suitable for evacuating closed systems or maintaining a constant vacuum in the range of 150 to 1013 mbar (absolute), or 120 to 1013 mbar (absolute) with the vacuum seal valve option.
Optional accessories:
External suction filter
Vacuum gauges / vacuum switches
Manometers / pressure switches
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-VD 3 | ||
| Pumping speed m³/h (50Hz) | 3 | ||
| Pumping speed m³/h (60Hz) | 3,6 | ||
| Pressione finale (ass.) mbar | ≤ 150 | ||
| Motor power kW (50Hz) | 0,12 | ||
| Motor power kW (60Hz) | 0,15 | ||
| Number of laps rpm (50Hz) | 3000 | ||
| Number of laps rpm (60Hz) | 3600 | ||
| Dimensioni L x B x H mm | 201x108x124 | ||
| Weight kg | 4,9 | ||
| Connections | |||
| Inlet | 1/8” Gas | ||
| Outlet | 1/8” Gas |
