Description

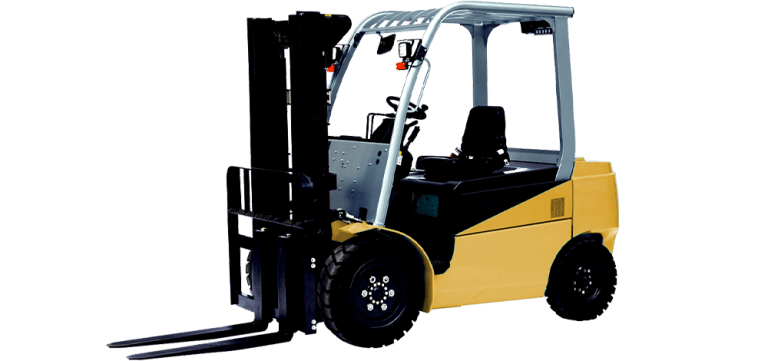

The electric forklift is engineered for high-efficiency performance in modern logistics, warehousing, and industrial environments. Featuring dedicated battery systems and a customized electric drive configuration, it ensures low energy consumption, high torque output, and extended operational endurance—making it ideal for heavy-duty, continuous operation.
Its AC motor is fully maintenance-free and provides real-time fault code diagnostics, streamlining troubleshooting and minimizing downtime. The forklift is also equipped with a quick-change battery system, allowing for rapid replacement and reduced maintenance interruptions.
Designed to perform in diverse material handling environments, it offers a range of optional mast and fork configurations to accommodate different operational needs. Whether navigating narrow aisles or managing high-load demands, this electric forklift delivers smooth handling and flexible maneuverability.
Key Advantages:
-
Low-energy, high-traction electric drive system for long working hours.
-
Maintenance-free AC motor with fault code support for efficient servicing.
-
Flexible frame and fork options tailored for various logistics tasks.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-SFE35 | SMC-CE-SFE30 | SMC-CE-SFE25 |
| Load Weight(kg) | 3500 | 3000 | 2500 |
| Maximum lifting height(mm) | 4045 | 4045 | 4045 |
| Wheelbase(mm) | 1785 | 1785 | 1495 |
| External dimensions | 3738×1268×2137 | 3667×1268×2137 | 3370×1265×2068 |
| Load center distance(mm) | 500 | 500 | 500 |
| Front overhang(mm) | 509 | 504 | 464 |
| Forward/Backward Tilting Angle of Gantry(°) | 6°/12° | 6°/12° | 6°/12° |
| Emissions | Nil | Nil | Nil |
