Description

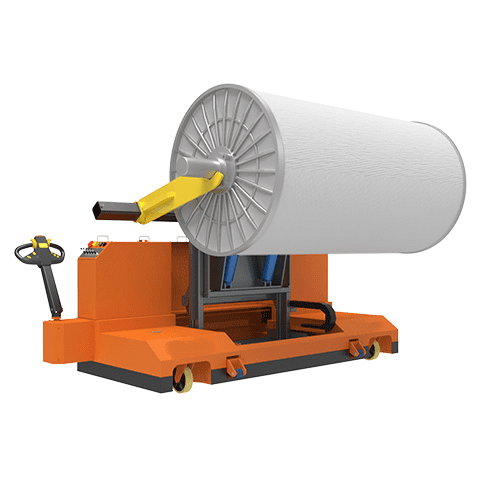

The SMC-TE-MBT-05 Electric Pile Beam High Lift Truck is specially engineered for the efficient lifting and transport of pile and ground warp beams, featuring a four-way movement capability for maximum maneuverability. Its user-friendly design ensures easy and intuitive operation, while integrated safety systems offer controlled, secure handling during transport. Designed with the latest technology, it outperforms traditional beam trucks in both efficiency and reliability. Built for durability in demanding textile environments, the unit comes with a 3-year warranty on all mechanical parts, making it a smart investment for high-volume operations.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-MBT-05 | ||
| Carrying Capacity | 2000/2500/3000/3500 kgs | ||
| Lifting Height | 2300 mm | ||
| Beam Flange Diameter | 800-1250mm | ||
| Lifting / Driving | 4 Motors | ||
| Battery | 24 V/ 420Ah | ||
| Application | Adapt to Any Loom (Width 1.7-3.6m) |
