Description

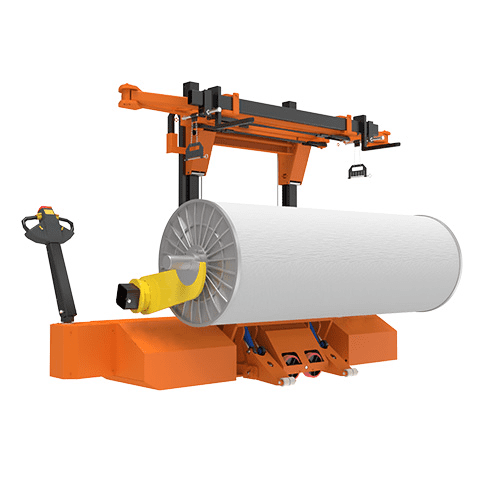

Electric Warp Beam Lifting Trolley with Harness/Heald Frame Mounting Device
The SMC-TE-MBT-02I Electric Warp Beam Lifting Trolley is equipped with an integrated harness and heald frame mounting device, offering a smart and efficient solution for warp beam handling and installation. Its user-friendly design ensures easy operation, while the safety systems provide complete control during lifting and movement. Utilizing advanced technology, this model surpasses conventional methods in performance and reliability. Built for long-term industrial use, the mechanical components come with a 3-year warranty, providing peace of mind and minimizing downtime in high-demand textile environments.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-MBT-02I | ||
| Carrying Capacity | |||
| 1500KGS for Bottom Beam | |||
| 300KGS for Heald Frame | |||
| Beam Flange Diameter | 800-1250mm | ||
| Lifting/Driving | Three Motors | ||
| Battery | 24V/210Ah(240Ah) | ||
| Lifting Height | |||
| 700mm for Bottom Beam | |||
| 1950mm for Heald Frame |
