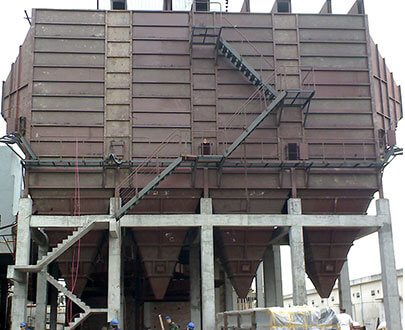

ESP Electrostatic Precipitator – Ultra-Efficient Industrial Dust Control
The ESP Electrostatic Precipitator, also known as an electrostatic dust collector, is a highly effective solution for removing fine particles from large volumes of industrial flue gas. Utilizing high-voltage electrostatic fields, this system charges dust particles as they pass through, then captures them on oppositely charged collecting plates—ensuring clean air and reduced emissions in even the most demanding environments.
This technology is particularly valuable in industries with high dust loads, such as cement production, where ultrafine particles (under 10 microns) dominate emissions. SMC’s ESP systems are strategically positioned behind cement kilns and other key stages to ensure compliance and environmental responsibility.
Performance Highlights:
Exceptionally high dust removal efficiency: Over 99% for particles as small as 0.005 microns
Energy-saving operation: Low power consumption and reduced operating costs
Quiet performance: Minimal noise compared to mechanical alternatives
Easy maintenance and dust recovery: Promotes long-term system stability
Ideal for high-temperature, high-volume flue gas applications
Built for longevity and efficiency, the ESP electrostatic precipitator from SMC is an essential part of modern cement plant emission control, offering reliable dust capture with minimal environmental impact.
Technical Details
| Description | |||
|---|---|---|---|
| Model | HEP60 | HEP90 | HEP120 |
| Process capacity（Nm³/h） | 160000 | 210000 | 302400 |
| Airspeed（M/s） | 0.65 | 0.65 | 0.7 |
| Entrance dust density(g/m³) | ≤80 | ≤80 | ≤80 |
| Exit dust density(g/m³) | ≤100 | ≤100 | ≤100 |
| Chamber number/ electric field number | 3/3 | 3/3 | 3/3 |
| Homopolar spacing（mm） | 400 | 400 | 400 |
| Channel number | 21 | 24 | 24 |
| Entrance smoke temperature（℃） | <300 | <300 | <300 |
| Vibration type | Mechanical | Mechanical | Mechanical |
| Rectifier transformer type（A/KV） | GGAJO2-0.6A/65KV | GGAJO2-0.7A/65KV | GGAJO2-1.0A/72KV |
