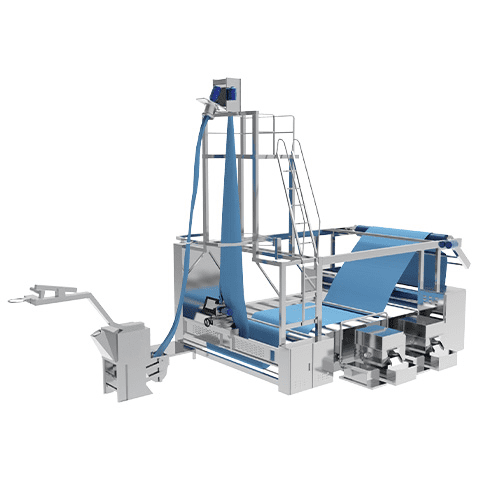

SMC-TE-01 Tubular Rope Opener & SMC-TE-02 Tubular Fabric Slitting Machine
The SMC-TE-01 Tubular Rope Opener and SMC-TE-02 Tubular Fabric Slitting Machine are high-performance machines designed to streamline post-dyeing and fabric preparation processes.
The SMC-TE-01 is engineered for continuous high-speed operation, featuring a raisable frame with an automatic detwister, adjustable slitting basket, needle drop sensor for precise positioning, and an infrared spreading-centering unit to ensure accurate alignment. It also includes optional components like a hydraulic turntable and squeezing unit for enhanced efficiency in heavy-duty or wet fabric handling.
The SMC-TE-02 focuses on cutting and opening tubular raw fabrics with an adjustable disk cutter and a variable-speed motor (0–60 m/min). It offers user-friendly features such as simple fabric input control and an automatic stop sensor for smooth roll transitions, with the added option of horizontal slitting.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-01 | SMC-TE-02 | SMC-TE-02I |
| Running Speed | 0-100 m/100min | 0-60 m/min | 0-80 m/min |
| Fabric Width | 2.0-3.0 m | 1.84-4.0 meters | 1.8-4.0 meters |
| Max Rope Diameter | 800 mm | 500 mm | Nil |
| Material | Stainless Steel 304 for wet fabric / A3 Steel for dry Fabric | Nil | Nil |
| Electric Specs | Customized | Nil | Nil |
| Standard Roll Weight | Nil | 50 kg | Nil |
