Description

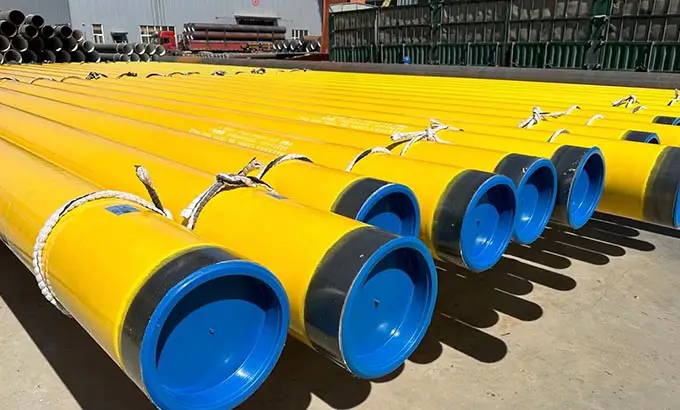

FBE Coated Steel Pipe
Durable, Corrosion-Resistant Piping for Demanding Applications
FBE (Fusion Bonded Epoxy) Coated Steel Pipe offers exceptional external corrosion resistance, ideal for oil, gas, water, and industrial pipeline systems. The coating is applied as a dry epoxy powder (400–600μm thick) and fused to the heated pipe surface, creating a smooth, uniform, and highly durable protective layer.
Key Features:
High Corrosion Resistance: 400–600μm fusion-bonded epoxy coating
Strong Adhesion: Bonds tightly to steel through electrostatic spray application
Chemical Protection: Resistant to harsh environments and chemical exposure
Uniform Finish: One-step film layer for a seamless, smooth surface
Surface Prep: Shot blasting and preheating ensure optimal coating performance
Standards-Compliant: Meets industry specs for energy and infrastructure use
Applications:
✔ Oil & gas pipelines
✔ Potable and industrial water lines
✔ Buried utility and infrastructure piping
Technical Details
| Description | |||
|---|---|---|---|
| Models | BE (Fusion Bond Epoxy) Coated Pipe | Epoxy Coated Carbon Steel Pipe | Single-layer Anti-corrosion Epoxy Powder Pipe |
| Outer diameter | 20mm~3600mm | 20mm~3600mm | 20mm~3600mm |
| Wall thickness | 1mm~80mm | 1mm~80mm | 1mm~80mm |
| Length | Random Length, Fixed Length, SRL, DRL | Random Length, Fixed Length, SRL, DRL | Random Length, Fixed Length, SRL, DRL |
| Application | Used for natural gas, petroleum, water & sewage, and pipe systems | Used for natural gas, petroleum, water & sewage, and pipe systems | Used for natural gas, petroleum, water & sewage, and pipe systems |
| Coating Standard | DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 CAN/CSA-Z245.21 | DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 CAN/CSA-Z245.21 | DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 CAN/CSA-Z245.21 |
