Description

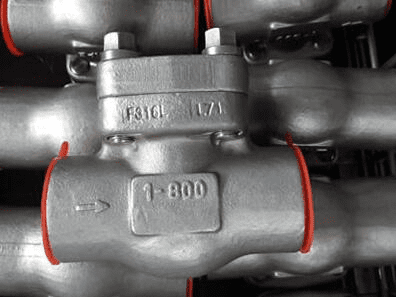

SMC forged check valves are designed to prevent backflow and ensure unidirectional flow in high-pressure piping systems. Manufactured from premium forged steel, these valves offer exceptional strength, durability, and resistance to thermal and mechanical stresses. The reliable, spring-loaded or swing-type mechanism allows for automatic closing when flow reverses, protecting pumps, compressors, and other equipment. SMC forged check valves are ideal for applications in oil and gas, petrochemical, power generation, and industrial processing, providing dependable performance and minimal maintenance in demanding environments.
Technical Details
| Description | |||
|---|---|---|---|
| Body Construction | Lift check valve, Swing check valve, Ball check valve | ||
| Bonnet Design | Bolted bonnet, Welded bonnet, Pressure sealed bonnet | ||
| Design and Manufacture | API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5 | ||
| Size Range | 1/2＂～4＂ | ||
| Pressure Ratings | 150LB-2500LB | ||
| Temperature Range | -196℃～500℃ | ||
| End Connections | Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange) | ||
| Face to Face Dimension | ASME B16.10 and other standard | ||
| Inspection and Testing | API 598 and other standard. |
