Description

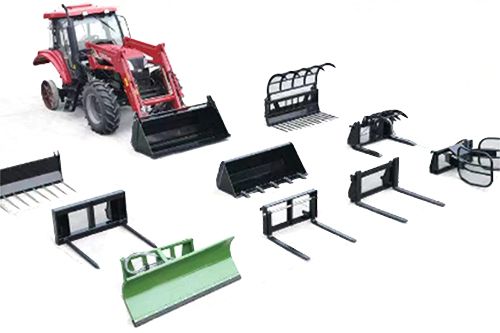

Engineered for performance, built for endurance — the Front Loader is your ultimate solution for heavy lifting and seamless material handling. Whether you’re moving soil, gravel, debris, or agricultural materials, this machine delivers unmatched strength and control on every job site.
With robust hydraulics, high-lift capacity, and intuitive operator controls, the Front Loader transforms tough tasks into smooth operations. Its rugged frame and reliable drivetrain ensure minimal downtime and maximum output, even in the harshest conditions.
Technical Details
| Description | |||
|---|---|---|---|
| Model | TZ02D | TZ03D | TZ04D |
| Power (HP) | 15～25 | 20～40 | 30～55 |
| Max. Lift height H (mm) | 2350 | 2550 | 2740 |
| Unloading height A (mm) | 1730 | 1840 | 2100 |
| Loading height L (mm) | 2170 | 2370 | 2560 |
| Bucket width (mm) | 1250 | 1250 | 1400 |
| Bucket capacity (m³) | 0.16 | 0.18 | 0.21 |
| Load capacity (kg) | 200 | 300 | 400 |
