Description

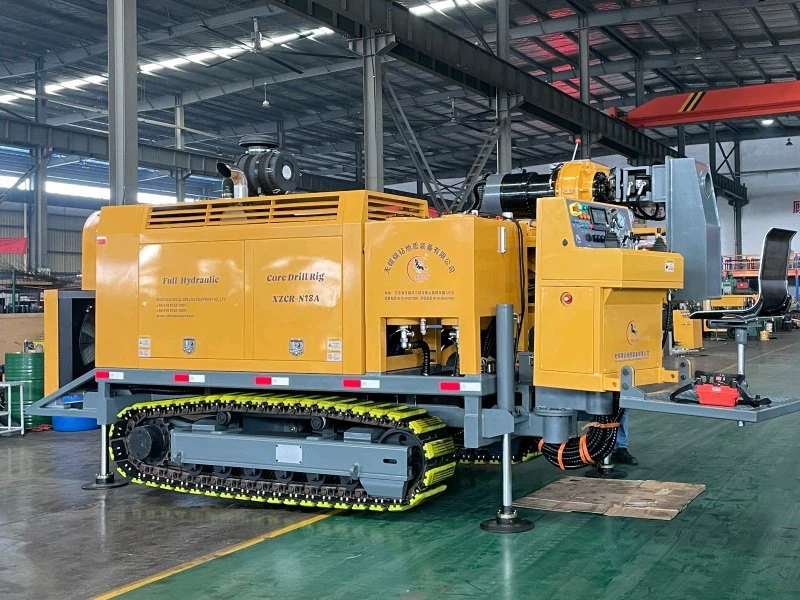

The SMC-DTH-CRN180 is a state-of-the-art full hydraulic core drilling rig engineered for high-performance applications in mining exploration, geotechnical engineering, construction, and deep geological surveys. Designed to deliver superior depth capacity and operational flexibility, this rig features a robust 178 kW Cummins engine, cutting-edge hydraulics, and intelligent control systems.
Built with a closed-circuit dual-motor spindle system, the CRN180 offers high torque output (up to 6400 N·m) and stepless speed regulation for a wide range of core drilling tasks. It integrates a two-speed mechanical gearbox and hydraulic gearbox to ensure smooth transitions and control in varying formations. The mast system provides a long feeding stroke of 3700 mm and a full angle range of 0° to 90°, making it suitable for both vertical and angled boreholes.
With a maximum drilling depth of up to 2200 m (BQ rods), high-capacity hoisting systems, and load-sensitive hydraulics, this crawler-mounted rig offers unmatched mobility, stability, and productivity. Advanced features like hydraulic clamps, digital monitoring, and dual operation panels make the SMC-DTH-CRN180 an elite choice for deep core drilling operations in harsh environments.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-CRN180 | ||
| Type | Full Hydraulic Core Drill Rig | ||
| Engine Brand | Cummins | ||
| Engine Model | QSB6.7-C240-30 | ||
| Engine Power | 178 kW | ||
| Max Engine Speed | 2200 rpm | ||
| Drilling Depth (BQ Rod) | 2200 m | ||
| Drilling Depth (NQ Rod) 1800 m | 1800 m | ||
| Drilling Depth (HQ Rod) | 1400 m | ||
| Drilling Depth (PQ Rod) | 1000 m | ||
| Hole Diameter | 125 mm | ||
| Spindle Rotation Speed | 0–1250 rpm (stepless, three-shift) | ||
| Max Spindle Torque | 6400 N·m | ||
| Max Spindle Lifting Force | 235 kN | ||
| Max Feeding Force | 80 kN | ||
| Main Hoist Capacity | 120 kN (single wire) | ||
| Main Hoist Wire Diameter | 20 mm | ||
| Main Hoist Wire Length | 50 m | ||
| Wire Hoist Capacity | 15 kN (bare drum) | ||
| Wire Hoist Wire Diameter | 6 mm | ||
| Wire Hoist Wire Length | 2000 m | ||
| Mast Height | 9.5 m | ||
| Mast Adjusting Angle | 0°–90° | ||
| Drilling Angle | 45°–90° | ||
| Feeding Stroke | 3700 mm | ||
| Slippage Stroke | 1000 mm | ||
| Clamping Scope (Lower Holder) | 55.5 mm – 118 mm (Max Ø165 mm) | ||
| Mud Pump Model | BW320 | ||
| Transport Mode | Crawler | ||
| Weight | 11,000 kg (11T) | ||
| Overall Dimensions (L×W×H) | 6350 × 2240 × 2480 mm |
