Description

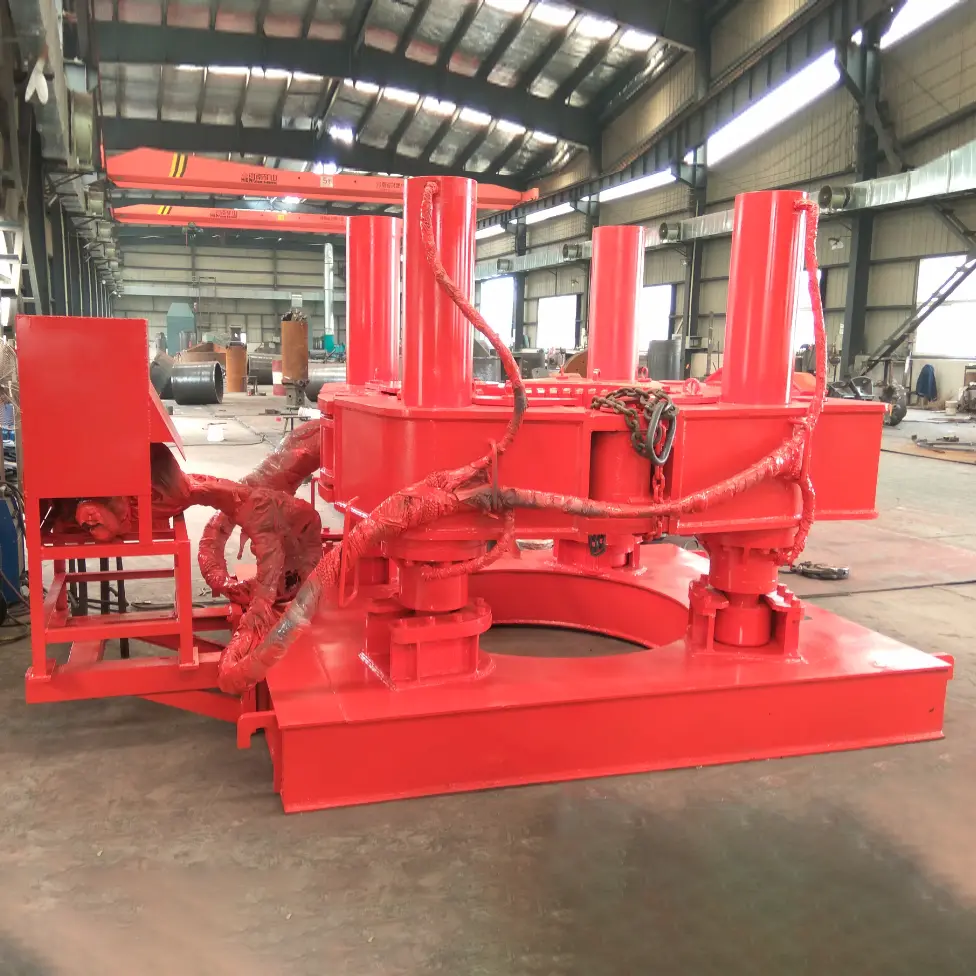

The SMC-CE hydraulic extractor series, including models B1500 and B1200, offers powerful, efficient, and precise solutions for casing and drill pipe extraction. The SMC-CE-B1500 is a full hydraulic extractor specifically designed for pulling heavy-duty casings and drill pipes, with customizable circular fixture teeth tailored to fit various steel pipe sizes. Complementing this, the SMC-CE-B1200 provides a compact and lightweight alternative, capable of smoothly and safely extracting pipes made from different materials and diameters—including those in condensers, rewaterers, and oil coolers. Despite its smaller size, the B1200 ensures performance without vibration, impact, or noise, making it ideal for delicate operations and tight workspaces. Together, these models offer a reliable and adaptable solution for pipe extraction tasks across diverse industrial applications.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-B1200 | SMC-CE-B1500 | |
| Casing extractor diameter | 1200mm | 1500mm | |
| System pressure | 30MPa(max.) | 30MPa(max.) | |
| Working pressure | 30MPa | 30MPa | |
| Four jack stroke | 1000mm | 1000mm | |
| Clamping cylinder stroke | 300mm | 300mm | |
| Pull force | 320ton | 500ton | |
| Clamp force | 120ton | 200ton | |
| Total weight | 6.1ton | 8ton | |
| Oversize | 3000x2200x2000mm | 3700x2200x2100mm | |
| Power pack | Motor power station | Motor power station | |
| Rate power | 45kw/1500 | 45kw/1500 | |
| Engine | Three-phase asynchronous motor | Three-phase asynchronous motor | |
| Power | 45 (Kw) | 45 (Kw) | |
| Rotation speed | 1500 (rpm) | 1500 (rpm) | |
| Fuel delivery | 150 (L/min) | 150 (L/min) | |
| Working pressure | 300 (Bar) | 25 (Mpa) | |
| Tank capacity | 850 (L) | 850 (L) | |
| Overall dimension | 1850*1350*1150 (mm) | 1920*1400*1500 | |
| Weight (excluding hydraulic oil) | 1200 Kg | 1500 Kg |
