Description

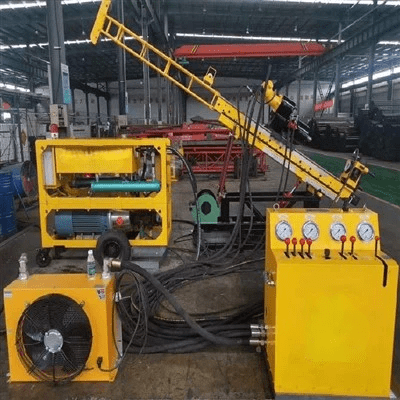

The SMC-DTH-XZKD95 is a high-performance, full-hydraulic core drilling rig engineered for demanding underground applications such as mine exploration, railway engineering, tunnel boring, and water conservancy projects. Featuring a robust hydraulic system, the rig delivers superior torque, multi-angle drilling capability, and exceptional reliability under extreme geological conditions.
With its modular design—including a main body, power unit, and control panel—the XZKD95 ensures ease of transport, quick assembly, and straightforward maintenance. Its fluid-driven rotation, feed, pumping, and clamping systems provide ultra-smooth drilling performance with minimal downtime.
Capable of handling HQ, NQ, and BQ drill rods, this rig supports both vertical and horizontal coring up to 700 meters, with 360° azimuth adjustability for optimal directional drilling. The V-guide system ensures excellent axial concentricity, while the hydraulic power head stroke of 1600 mm enhances penetration efficiency.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-XZKD95 | ||
| Drilling Type | Full Hydraulic Core Drilling | ||
| Drill Rod Compatibility | HQ, NQ, BQ | ||
| Max. Drilling Depth (HQ Rod) | 400 m (Downward) / 350 m (Horizontal) / 250 m (Upward) | ||
| Max. Drilling Depth (NQ Rod) | 600 m (Downward) / 500 m (Horizontal) / 300 m (Upward) | ||
| Max. Drilling Depth (BQ Rod) | 700 m (Downward) / 600 m (Horizontal) / 350 m (Upward) | ||
| Spindle Speed Range | 280 – 1200 rpm | ||
| Max. Spindle Torque | 1050 Nm | ||
| Axial Thrust (Feed Force) | ≥ 65 kN | ||
| Axial Pull Force (Lifting) | ≥ 85 kN | ||
| Hydraulic System Pressure | Working: 20 MPa / Max: 25 MPa | ||
| Main Pump Pressure / Flow | 31.5 MPa / 100 ml/r | ||
| Auxiliary Pump Pressure / Flow | 25 MPa / 16 ml/r | ||
| Power Head Stroke | 1600 mm | ||
| Surface Drilling Angle | 0°–90° | ||
| Underground Drilling Angle | 0°–360° | ||
| Azimuth Rotation | 0°–360° | ||
| Motor Power | 75 kW | ||
| Motor Speed | 1480 rpm | ||
| Main Body Size (L×W×H) | 2620 × 600 × 750 mm | ||
| Main Body Weight | 1335 kg | ||
| Power Unit Size (L×W×H) | 1770 × 1000 × 1420 mm | ||
| Power Unit Weight | 1080 kg | ||
| Control Panel Size (L×W×H) | 700 × 400 × 1100 mm | ||
| Control Panel Weight | 80 kg | ||
| Certification | ISO9001 | ||
| Applications | Mineral Exploration, Tunnel Drilling, Railway & Hydropower Geology | ||
| Origin | Wuxi, China |
