Description

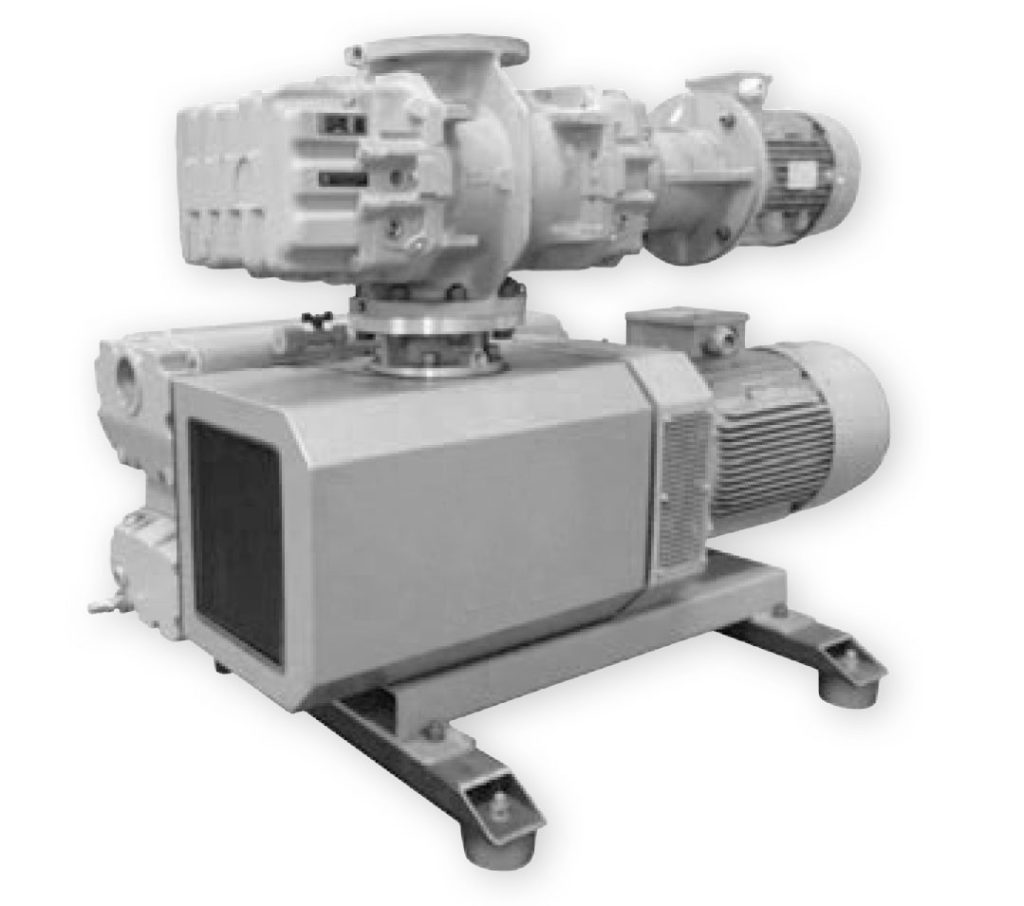

GC Series Vacuum Pump Sets are compact and efficient systems designed for customers who require the integration of vane vacuum pumps with Roots pumps in a space-saving configuration. These systems offer a high-performance vacuum solution without compromising on footprint, making them ideal for environments where space is limited. Engineered for reliability and versatility, the GC Series delivers consistent vacuum levels and is well-suited for a variety of industrial applications, including packaging, textile processing, and general manufacturing. Their modular design ensures easy maintenance and long service life.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-11.3-401 | SMC-HTE-11.4-541 | SMC-HTE-12.5-401 |
| Pumping speed m³/h (50Hz) | 500 | 750 | 1000 |
| Pumping speed m³/h (60Hz) | 600 | 900 | 1200 |
| Ultimate pressure with gas ballast (abs.) mbar | ≤ 2 x 10-2 | ≤ 2 x 10-2 | ≤ 2 x 10-2 |
| Sound pressure level dB(A) (50Hz) | 79 | 79 | 79 |
| Sound pressure level dB(A) (60Hz) | 80 | 80 | 80 |
| Dimensions LxBxH mm (50Hz) | 1270x632x908 | 1420x632x908 | 1270x632x948 |
| Weight kg (50Hz) | 435 | 505 | 535 |
| Weight kg (60Hz) | 474 | 537 | 589 |
| Connections | |||
| Inlet | DN100 | DN100 | DN100 |
| Outlet | 3” Gas | 3” Gas | 3” Gas |
