Description

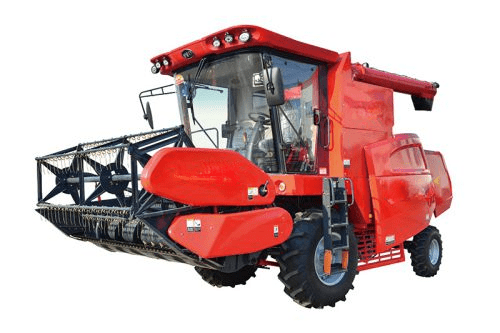

This high-performance agricultural machine is built for durability, fuel efficiency, and operator comfort—delivering reliable results across a range of field conditions.
Its reinforced frame, made from 16Mn rectangular steel tubing, minimizes vibration damage during operation. The use of Peer’s bearings and high-quality belts ensures a long service life, while the single-pump, single-motor hydraulic system offers stable and dependable performance.
Powered by a high-pressure common rail multimode engine, the machine delivers strong output with low fuel consumption. The efficient rubbing thresher system effectively separates grain from chaff and straw, improving overall productivity.
Operator comfort is prioritized with a suspension seat and electromagnetic control lever that offer smooth, intuitive handling. A color display keeps the operator informed with real-time monitoring of machine performance.
Versatile in application, the machine supports a variety of implements, making it ideal for harvesting crops such as corn, beans, and more.
Technical Details
| Description | |||
|---|---|---|---|
| Model | 4LZ-9B1 | ||
| Dimensions (L*W*H) (mm) | 7160*3200*3420 | ||
| Weight (kg) | 5900 | ||
| Engine power (kW) | 139.7 | ||
| Minimum ground clearance (mm) | 280 | ||
| Cutting width (mm) | 2750 | ||
| Feeding rate (kg/s) | 9 | ||
| Harvesting speed (km/h) | 0.7～9.8 | ||
| Harvesting output (hm2/h) | 0.4～1.08 | ||
| Operating device | electromagnetic control lever/multifunction lever | ||
| Driving mode | Hydrostatic drive/mechanical transmission | ||
| Grain tank size (m³) | 2.5 | ||
| Fuel capacity (L) | 320 |
