Description

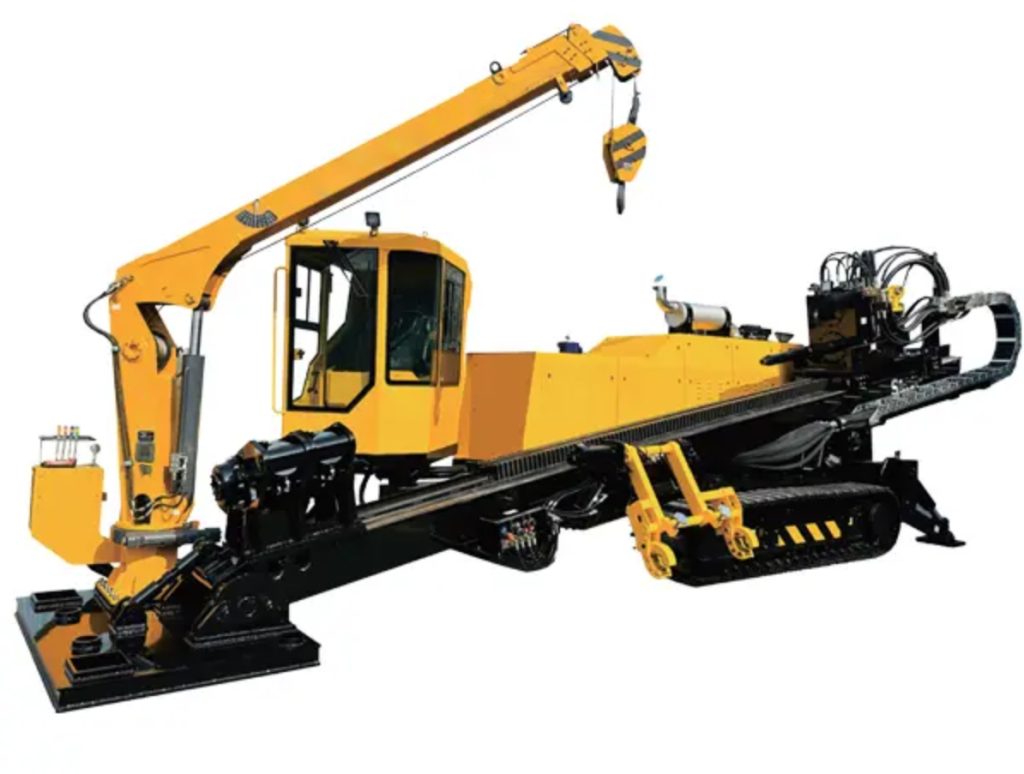

The SMC-CE-60AL Horizontal Directional Drilling Rig is a high-performance, compact, and portable machine designed for efficient drilling in diverse soil conditions including clay, sand, and rock. With an operating angle of 11°–22° and a pullback force of 800–1200KN, it supports deep drilling using ф89mm rods (4.5m or 6m) and handles pipes up to Φ1500mm. Weighing just 15 tons, it offers easy mobility and is equipped with advanced components like a USA Sauer hydraulic system, French Poclain motor, and German Rexroth motor for maximum efficiency and durability. Its compact size and Komtrax remote monitoring make it ideal for demanding, precision-driven projects.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-60AL | SMC-CE-75A | SMC-CE-80 |
| Engine Power | 194/2200KW | 264/2200KW | 264/2200KW |
| Max Thrust force | 600/1200KN | 750/1500KN | 800/1200KN |
| Max Pullback force | 600/1200KN | 750/1500KN | 800/1200KN |
| Max Torque | 27000N.M | 40000N.M | 36000N.M |
| Max Rotary speed | 120rpm | 130rpm | 140rpm |
| Max Moving speed of power head | 48m/min | 40m/min | 30m/min |
| Max Mud pump flow | 600L/min | 800L/min | 800L/min |
| Max Mud pressure | 10±0.5Mpa | 10±0.5Mpa | 10±0.5Mpa |
| Size(L*W*H) | 9600x2300x2480mm | 9600x2300x2480mm | 11500×2550×2650mm |
| Weight | 15T | 18T | 21T |
| Diameter of drilling rod | ф 89mm | ф 102 or ф 114mm | Φ102mm |
| Length of drilling rod | 4.5m | 4.5m | 6m |
| Max diameter of pullback pipe | ф 1500mm Soil Depended | ф 1500mm Soil Depended | Φ1500mm Soil Depended |
| Max construction length | 800m Soil Depended | 900m Soil Depended | 1000m Soil Depended |
| Incidence Angle | 11~20° | 11~22° | 11~22° |
| Climbing Angle | 14° | 15° | 15° |
