Description

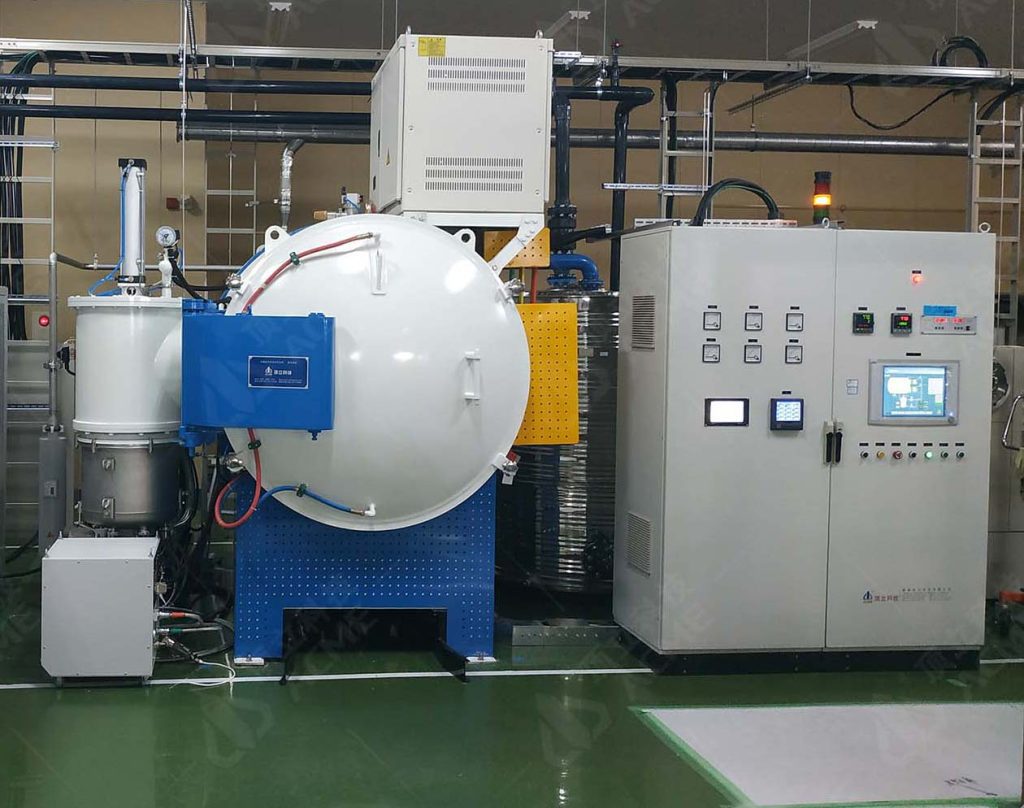

Horizontal high vacuum brazing furnace is used for the vacuum brazing of materials like non-ferrous metal, stainless steel, titanium alloy, high temperature alloy, cemented carbide, etc.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-335S | SMC-HTE-446S | SMC-HTE-557S |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 500 | 400×400×600 | 500×500×700 |
| Loading capacity (kg) | 250 | 250 | 400 |
| Heating Power (kW) | 75 | 75 | 90 |
| Max. temperature (°C) | 1350/1700/2300 | 1350/1700/2300 | 1350/1700/2300 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4×10⁻³/6×10⁻⁴ | 4×10⁻³/6×10⁻⁴ | 4×10⁻³/6×10⁻⁴ |
| Pressure Increasing Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas cooling pressure (bar) | 2/6/10 | 2/6/10 | 2/6/10 |
