Description

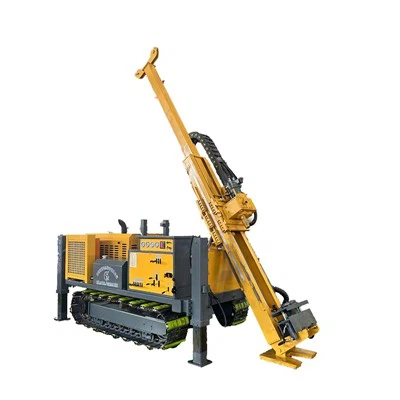

The SMC-DTH-CR1000 is a fully hydraulic crawler-mounted core drilling rig designed for deep exploration and high-efficiency drilling across challenging terrains. Developed through rigorous R&D and market feedback, this machine integrates advanced hydraulic systems with modular components to deliver performance, durability, and easy maintenance in demanding field conditions.
Powered by a 133 kW Cummins engine, the CR1000 is capable of drilling depths of up to 1200 meters using BQ rods. Its robust steel crawler system, controlled via wireless remote, ensures optimal mobility on uneven ground, while the top-drive configuration delivers high torque and continuous rotational performance. The adjustable mast allows for drilling angles from 45° to 90°, enabling flexible operations in varied geological settings.
The fully integrated hydraulic system, paired with long-stroke feed and high spindle lifting capacity (180 kN), makes this rig an ideal choice for mineral exploration, geotechnical studies, and infrastructure foundation investigations. Components are easily replaceable on-site thanks to its modular build, significantly reducing downtime.
Whether you’re drilling in mountainous terrain, desert basins, or forested zones, the SMC-DTH-CR1000 delivers unmatched efficiency, safety, and operational control.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-CR1000 | ||
| Type | Hydraulic Crawler Core Drill Rig | ||
| Engine Brand | Cummins | ||
| Engine Model | QSB5.9-C180-33 | ||
| Engine Power | 133 kW | ||
| Displacement | 5.9 L, 6-cylinder | ||
| Max Engine Speed | 2200 rpm | ||
| Drilling Depth (BQ Rod) | 1200 m | ||
| Drilling Depth (NQ Rod) | 1000 m | ||
| Drilling Depth (HQ Rod) | 800 m | ||
| Drill Configuration | Top Drive | ||
| Max Spindle Torque | 1300 Nm | ||
| Max Spindle Lifting Force | 180 kN | ||
| Max Feeding Force | 50 kN | ||
| Hoist Capacity (Single Wire) | 10 kN (wireless) | ||
| Hoist Steel Wire Diameter | 6 mm | ||
| Hoist Steel Wire Length | 1300 m | ||
| Spindle Speed Range | 0–1600 rpm (stepless) | ||
| Mast Adjusting Angle | 0°–90° | ||
| Drilling Angle | 45°–90° | ||
| Feeding Stroke | 1800 mm | ||
| Slippage Stroke | 800 mm | ||
| Clamping Scope (Lower Holder) | 55.5 mm – 118 mm | ||
| Transport Mode | Steel Crawler (Remote Controlled) | ||
| Mud Pump Model | BWF-160 | ||
| Overall Dimensions (L×W×H) | 4850 × 2100 × 2800 mm | ||
| Total Weight | 6300 kg |
