Description

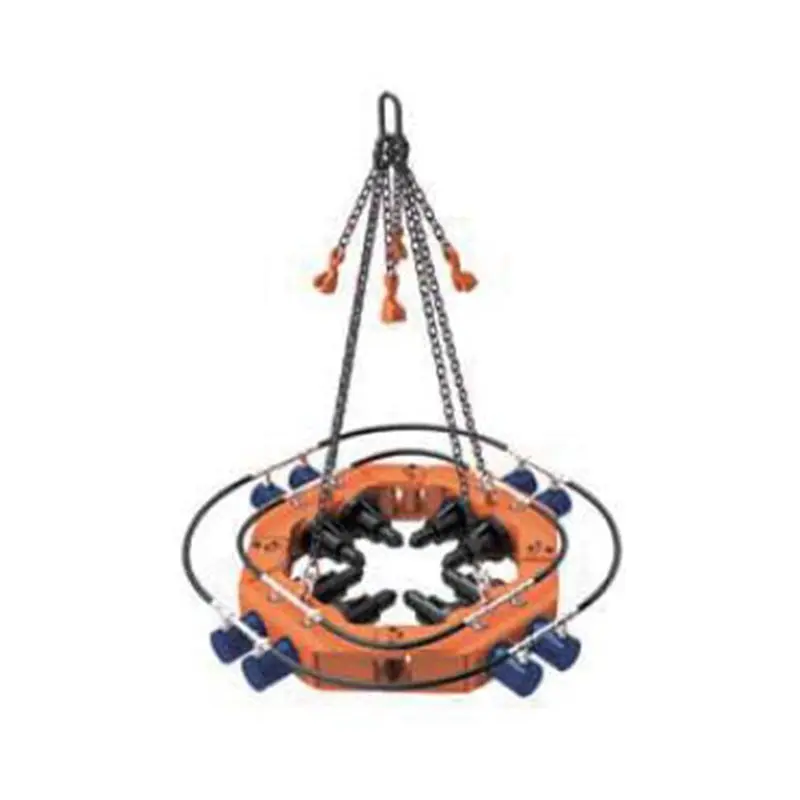

The leading hydraulic pile breaker, featuring five patented technologies and an adjustable chain system, is the most efficient solution for breaking foundation piles. Its modular design allows it to adapt to various pile sizes, making it highly versatile across different construction needs. Equipped with adjustable chains, the pile breaker can be seamlessly connected to a range of equipment, ensuring flexible and efficient operation on-site. This advanced system significantly enhances productivity, reduces manual labor, and ensures consistent, high-quality pile breaking performance.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SPF500A | SMC-CE-SPF500B | |
| Range of Pile diameter (mm) | 400-500 | 400-500 | |
| Maximum Drill rod pressure | 325kN | 325kN | |
| Maximum stroke of hydraulic cylinder | 150mm | 150mm | |
| Maximum pressure of hydraulic cylinder | 34.3MPa | 34.3MPa | |
| Maximum flow of single cylinder | 25L/min | 25L/min | |
| Cut the number of pile/8h | 120 | 120 | |
| Height for cutting pile each time | ≦300mm | ≦300mm | |
| Supporting the digging machine Tonnage(excavator) | ≧12t | ≧12t | |
| Work status dimensions | 1710X1710X2500mm | 1710X1710X2500mm | |
| Total pile breaker weight | 960kgs | 960kgs | |
| SPF500-A Construction’s Parameters | |||
| Length of drill rod | 170 (206) | 170 (206) | |
| Pile Diameter (mm) | 300-400 (400-500) | 300-400 (400-500) | |
| Remark | Standard Configuration (Optional Configuration) | Standard Configuration (Optional Configuration) |
