Description

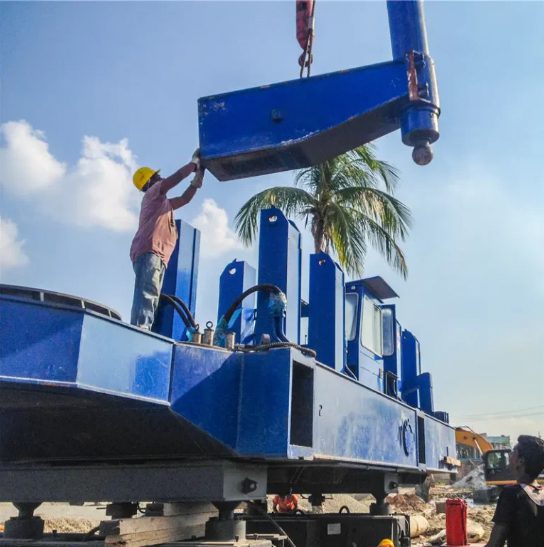

SMC-CE-VY420A and SMC-CE-VY700A hydraulic statics pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, and fast pile driving, high quality pile.
SMC-CE-VY700A hydraulic statics pile driver is represent the future development tendency of piling machinery. SMC-CE series hydraulic static pile driver has more than 10 varieties, the pressure capacity from 60 tons to 1200 tons. Using high quality materials and components, adopting the unique hydraulic piling design and processing methods ensures the clean and highly reliability of hydraulic system. High quality is guaranteed from the headstream. At SMC, our mission is to deliver reliable service and tailor-made solutions with a focus on customer satisfaction.
Technical Details
| Description | |||
|---|---|---|---|
| Model Parameter | SMC-CE-VY420A | SMC-CE-VY700A | |
| Max. piling pressure(tf) | 420 | 700 | |
| Max. piling speed(m/min) | Max | 6.2 | 6.65 |
| Min | 1.1 | 0.84 | |
| Piling stroke(m) | 1.8 | 1.8 | |
| Move stroke(m) | Longitudinal Pace | 3.6 | 3.6 |
| Horizontal Pace | 0.6 | 0.7 | |
| Slewing angle(°) | 10 | 8 | |
| Rise stroke(mm) | 1000 | 1100 | |
| Pile type (mm) | Square pile | F300-F600 | F400-F700 |
| Round pile | Ф300-Ф600 | Ф400-Ф800 | |
| Min. Side Pile Distance(mm) | 1400 | 1700 | |
| Min. Corner Pile Distance(mm) | 1635 | 1950 | |
| Crane | Max. hoist weight(t) | 12 | 30 |
| Max. pile length(m) | 14 | 16 | |
| Power(kW) | Main engine | 74 | 135 |
| Crane engine | 30 | 45 | |
| Overall dimension(mm) | Work length | 12000 | 16000 |
| Work width | 7300 | 9430 | |
| Transportation height | 3280 | 3390 | |
| Total weight(t) | 422 | 120 |
