Description

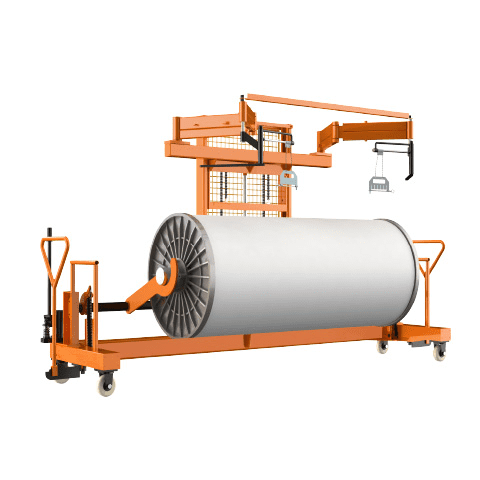

Warp Beam Lift Trolley is a robust, hydraulically operated solution specifically designed for efficient handling of warp beams in textile operations. Equipped with a harness mounting device, it supports a maximum load capacity of 2500kg, making it suitable for heavy-duty applications. The trolley features hydraulic beam lifting and a manual push/pull bar steering system, ensuring smooth and controlled maneuverability. Built for immediate deployment, it requires no installation and is ready to use upon arrival, offering a practical and user-friendly material handling solution for demanding weaving environments.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-HBT-02 | SMC-TE-HBT-01 | |
| Carrying Capacity | 1000-2500kgs for Bottom Beam | 1000-2500kgs | |
| 400kgs for Heald Frame | |||
| Beam Barrel Diameter | 100-400mm | 100-400mm | |
| Hydraulic Unit | One | One | |
| Beam Flange Diameter | 800-1250mm | 800-1250mm | |
| Hydraulic Cylinders | Two | Two | |
| Lifting Height | 700mm for Bottom Beam | 700mm | |
| 1950mm for Heald Frame |
