Description

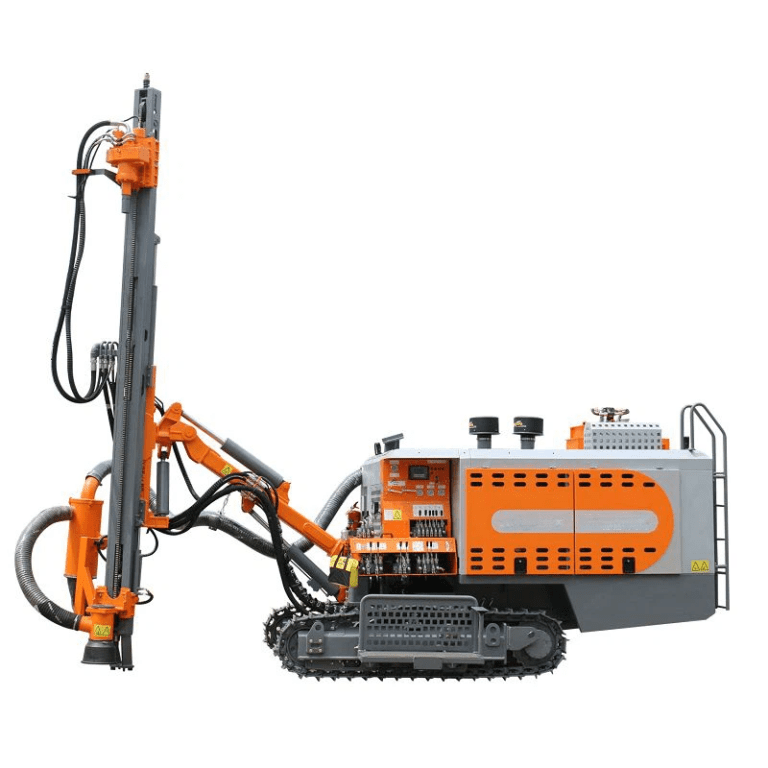

The SMC-TE-D535TA is a high-performance infrastructure drilling rig engineered to operate in demanding construction environments. Built with a powerful motor and an advanced hydraulic system, it delivers the strength and precision required to drill through hard rock, reinforced concrete, and other tough materials commonly found in infrastructure projects.
This rig is designed for reliability, durability, and versatility, making it a strong asset for applications such as road construction, bridge foundations, utility installations, and other large-scale civil works.
Technical Details
| Description | |||
|---|---|---|---|
| Engine manufacturer | Cummins | ||
| Emission standards | tire4/EU Stage IV | ||
| Engine model | QSB5.9-CS4-210C | ||
| Air working pressure | 18 bar | ||
| Air flow FAD | 12m3/min | ||
| Hole range | φ 90-115 mm | ||
| Drill pipe size | φ 60 mm | ||
| Drill pipe handling capacity | 6+1 | ||
| hole depth | 21m | ||
| feed total length | 5500mm | ||
| feed force | 7.5kn | ||
| tramming speed | high speed 3.2km/h,low speed 1.8km/h | ||
| hill climbing ability | 25° | ||
| carrier ground clearance | 300mm | ||
| rated power | 154kw @2200 rpm | ||
| track frame oscillation angle | +/-10° | ||
| DTH hammer | 3.5 | ||
| Rotation torque | 1258N.m | ||
| drill pipe length | 3000mm | ||
| feeding | hydraulic cylinder chain | ||
| feed travel length | 3680 | ||
| feed rate | 0.5m/s | ||
| pull up force | 31kn | ||
| traction force | 39kn | ||
| height | 2500 | ||
| width | 2300 | ||
| length | 6000 | ||
| weight (options excluded) | 6800kg |
