Description

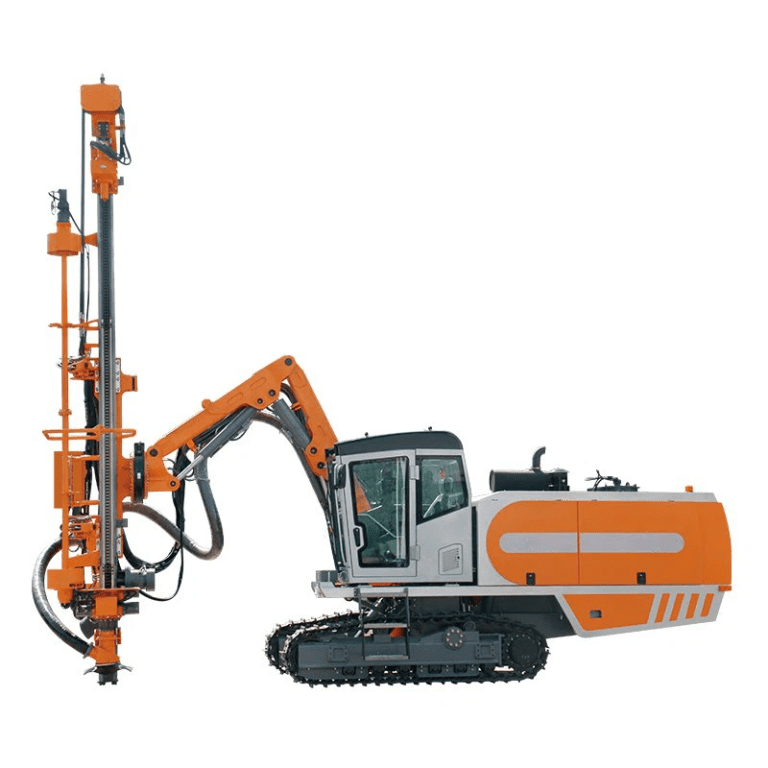

The SMC-TE-D435 is a high-mobility integrated down-the-hole drill rig designed for demanding drilling tasks across mining and construction sites. Engineered for performance and stability, this rig is equipped with strong travel power, reaching speeds of up to 3.1 km/h—allowing it to move efficiently across large and rugged terrains.
With a chassis ground clearance of 380mm, the SMC-TE-D435 is built to handle uneven ground and harsh site conditions with ease. Its folding boom design expands working coverage while maintaining a low and stable center of gravity, enhancing operational safety and precision during drilling tasks.
Reliable, adaptable, and easy to maneuver, the SMC-TE-D435 is a popular choice for operators seeking mobility, stability, and performance in a single integrated DTH drilling solution.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | φ 90 ‒ 127 mm | ||
| Recommended DTH hammer size | 3.5” / 4” | ||
| Drill pipe handling capacity | 6+1 | ||
| Drill pipe OD | 68/76 mm | ||
| Drill pipe length | 4 m | ||
| Maximum hole depth with Auto handling | 28 m | ||
| Rotation speed | 0 - 110 rpm | ||
| Maximum torque | 2,800 N.m | ||
| Diesel engine | Cummins B6.7-CS4-260C | ||
| Rated power | 194 kW ( 260 hp ) @ 2,000 rpm | ||
| Emission standard | Tier 4 | ||
| Fuel tank Capacity | 340 L | ||
| Maximum working pressure | 18 bar | ||
| Capacity FAD | 15 m 3 / min (529 CFM) | ||
| Boom type | Folding boom | ||
| Feed beam | High strength aluminum alloy | ||
| Hydraulic motor - chain | Feeding | ||
| Total length | 7,475 mm | ||
| Travel length | 4,585 mm | ||
| Feed extension | 1,200 mm | ||
| Feeding rate | 0.88 m / s | ||
| Maximum feeding force | 18 kN | ||
| Maximum pull up force | 24.8 kN | ||
| Track frame | with oscillation cylinders | ||
| Maximum Tramming speed | 3.1 km / h | ||
| Maximum Traction force | 165 kN | ||
| Slope climbing ability | 30° | ||
| Track frame oscillation angle | ±10° | ||
| Ground clearance | 380 mm | ||
| Weight | 14,800 kg | ||
| Length | 11,300 mm | ||
| Width | 2,550 mm | ||
| Height | 3,100 mm |
