Description

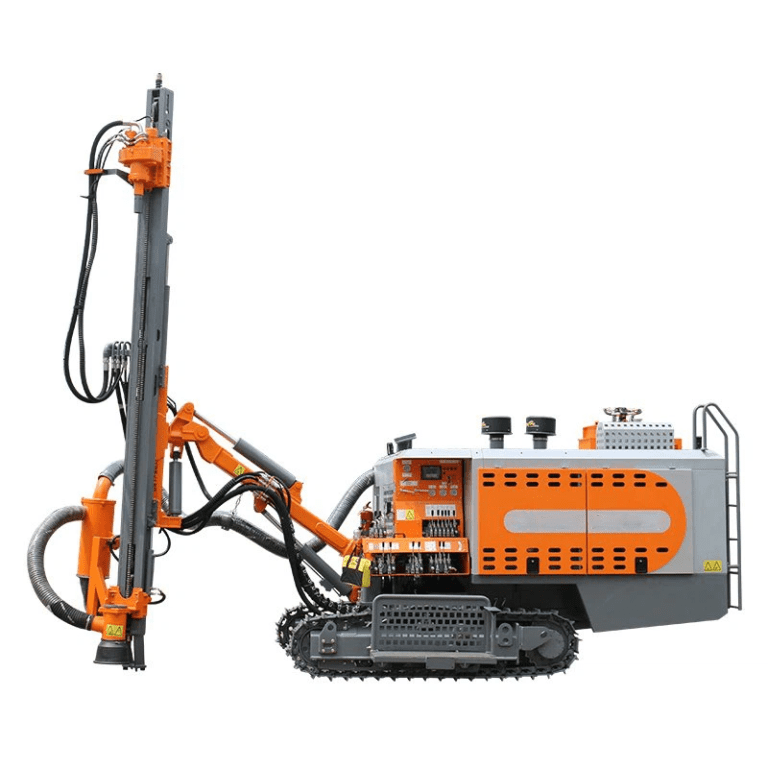

The SMC-TE-D535TA is a compact, integrated down-the-hole hammer drill rig built for blast drilling in medium-hard rock formations. Designed for surface quarry operations, small-scale mining, and general rock excavation, it offers efficient performance in a streamlined, easy-to-maneuver package.
With a hole diameter range of Φ90–115 mm, this model is optimized for precise, cost-effective drilling. Its compact structure ensures better maneuverability in confined or uneven terrain, making it a strong fit for operations requiring mobility without sacrificing power.
The SMC-TE-D535TA is engineered to deliver lower cost per meter drilled and long-term durability, offering a dependable return on investment for quarry and mining contractors focused on productivity, efficiency, and equipment reliability.
Technical Details
| Description | |||
|---|---|---|---|
| Engine manufacturer | Cummins | ||
| Emission standards | Tire4/ EU Stage Ⅳ | ||
| Engine model | QSB5.9-CS4-210C | ||
| Air working pressure | 18 bar | ||
| Air flow FAD | 12 m³ / min | ||
| Hole range | Φ90 - 115 mm | ||
| Drill pipe size | Φ60 mm | ||
| Drill pipe handling capacity | 6+1 | ||
| Hole depth | 21m | ||
| Feed total length | 5,500mm | ||
| feed force | 7.5kN | ||
| Tramming speed | High speed 3.2km/h, Low speed 1.8km/h | ||
| Hill climbing ability | 25° | ||
| Fuel tank capacity | 170 L | ||
| Carrier ground clearance | 300mm | ||
| Rated power | 154kW@2,200rpm | ||
| Track frame oscillation angle | +/-10° | ||
| DTH hammer | 3.5 inch | ||
| Rotation torque | 1,258N.m | ||
| Drill pipe length | 3,000mm (start pipe 2,000mm) | ||
| Feeding | Hydraulic cylinder - chain | ||
| Feed travel length | 3,680mm | ||
| Feed rate | 0.5m/s | ||
| Pull up force | 31kN | ||
| Traction force | 39kN | ||
| Height | 2,500mm | ||
| Width | 2,300mm | ||
| Length | 6,000mm | ||
| Weight (Options excluded) | 6,800kg |
